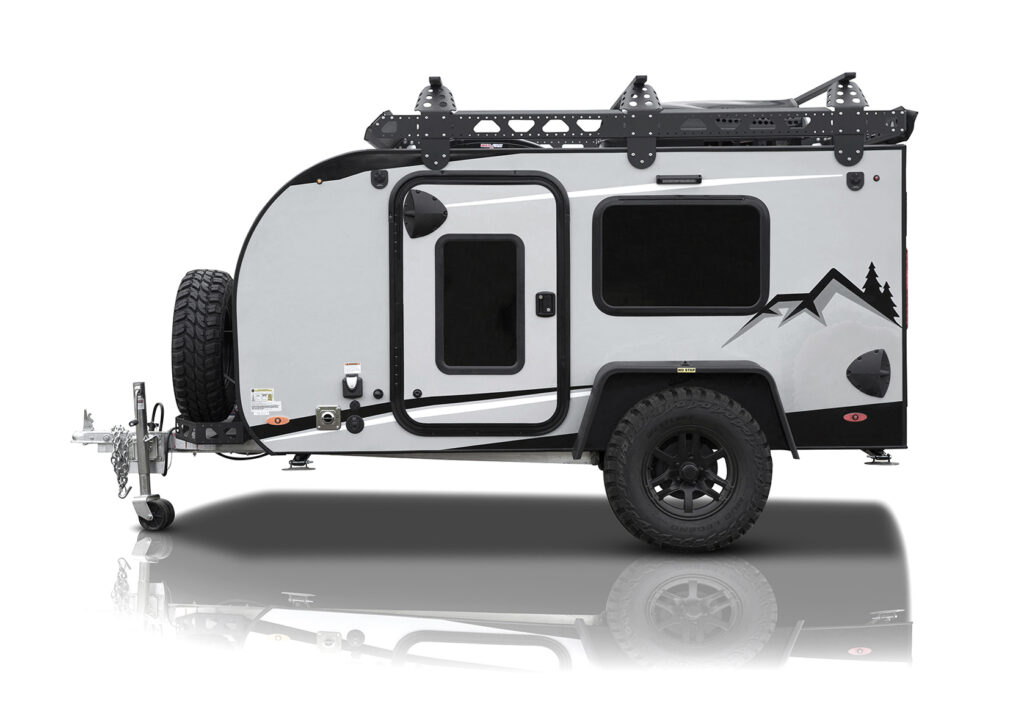

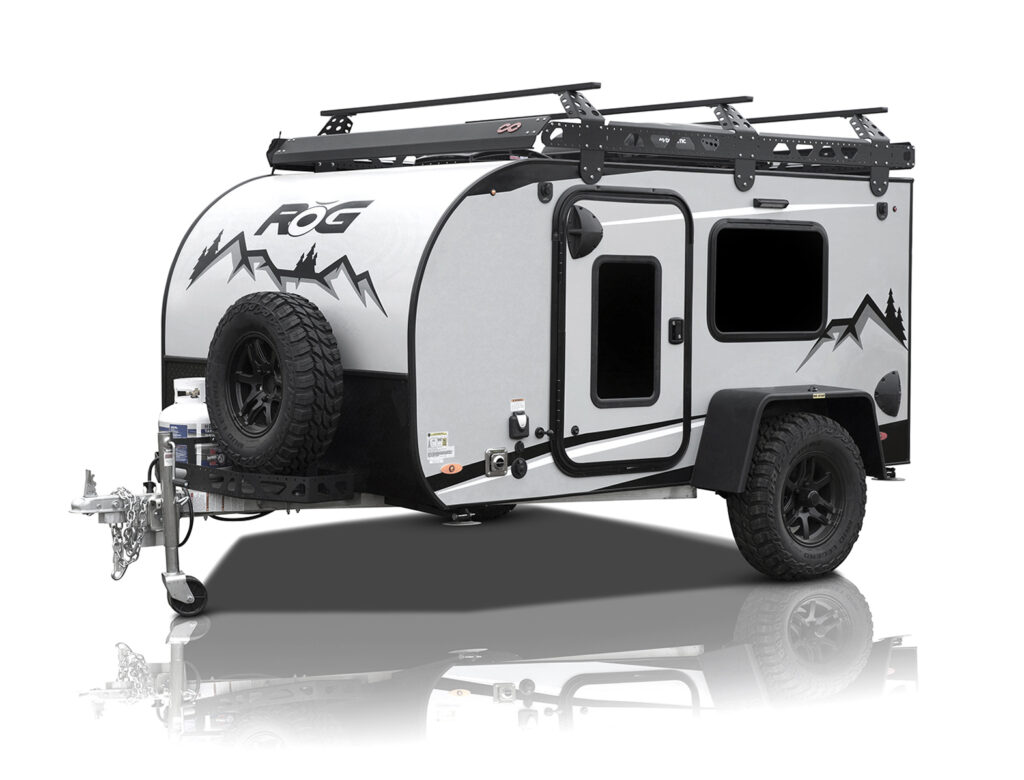

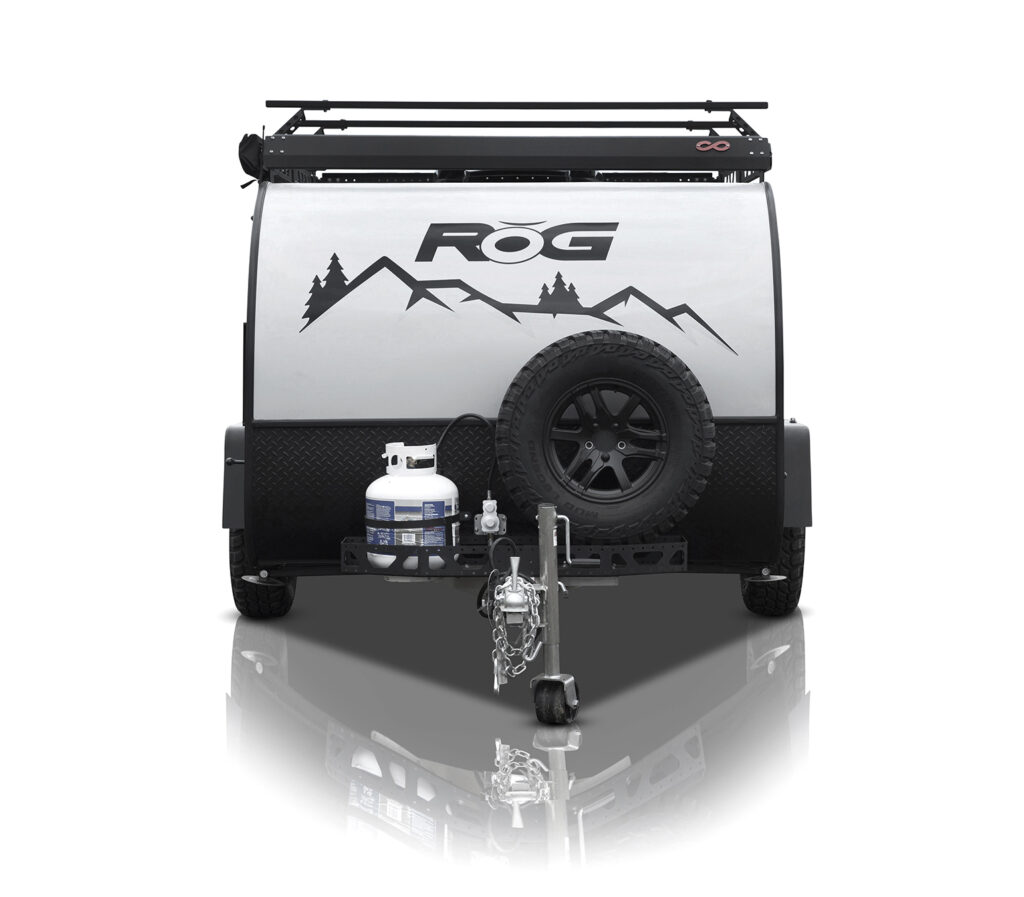

The RŎG 10MC Adventure Trailer just might be the perfect micro toy hauler you’ll ever find…this compact, lightweight, go-anywhere trailer is amazingly versatile. The 10MC fits inside a standard-size garage, is towable by most vehicles!
RŎG 10MC
ADVENTURE SERIES
Robust Capabilities in a Compact Design
The 10MC trailer is perfect for carrying ATVs, bicycles, E-bikes, and gear. The optional roof rack transports kayaks, canoes, or a roof-top tent for extra sleeping space. Its compact design offers ample space for all your transportation needs.
- Off-Road/Off-Grid Package (Mandatory):
• ST235/75R15 Off-Road Tires
• Full Size Spare Tire w/ Aluminum Wheel

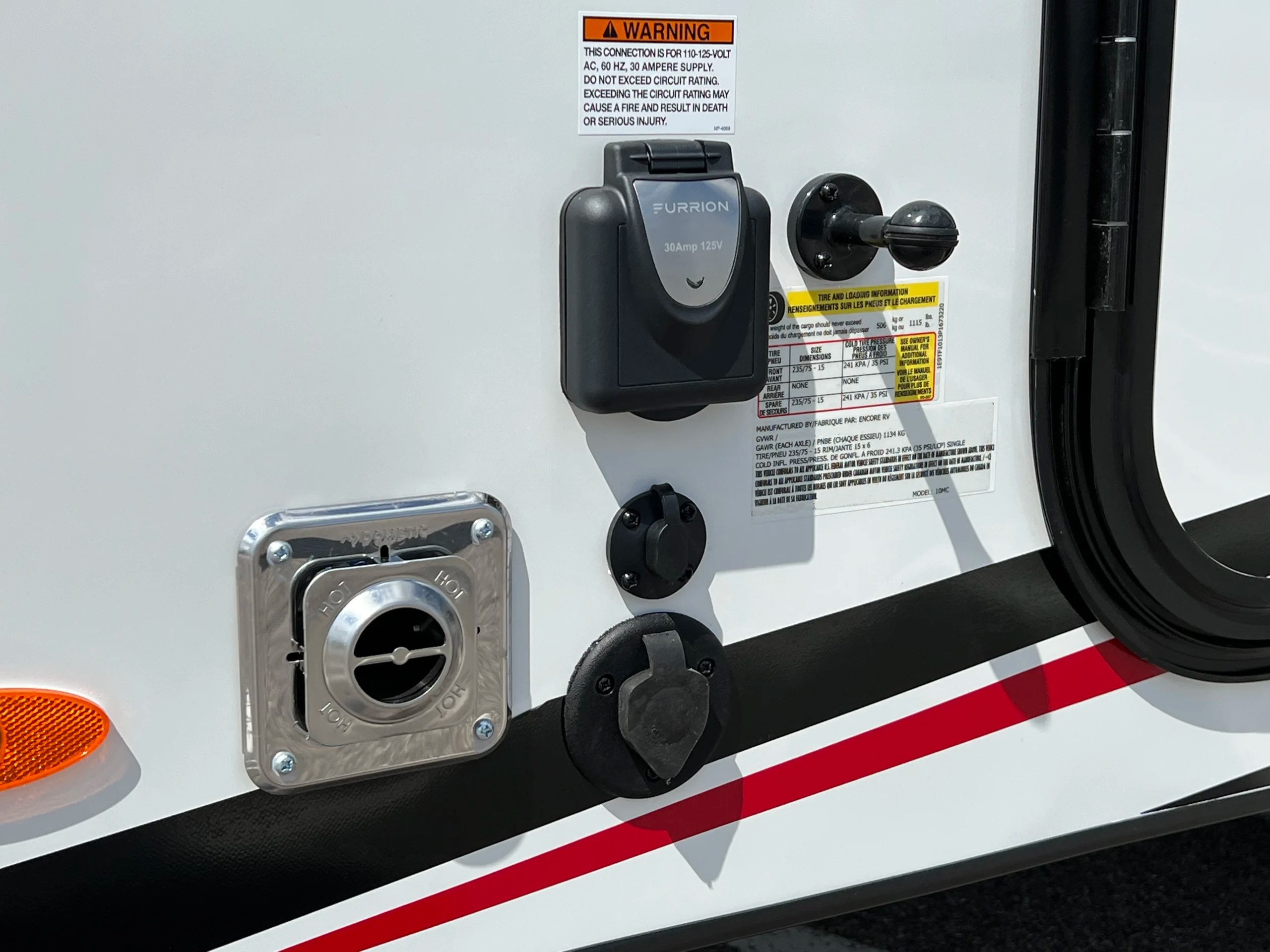

• Solar Prep

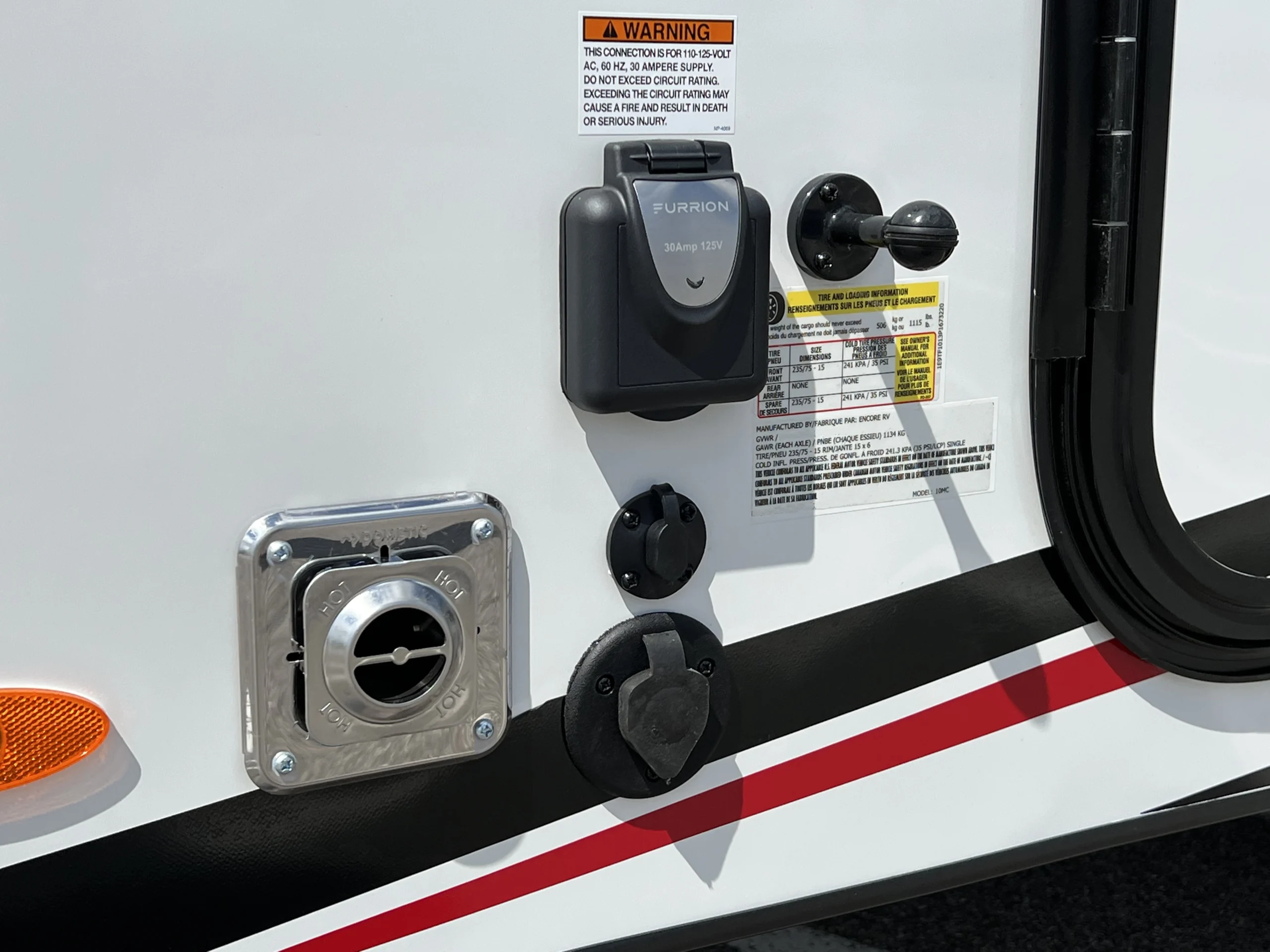

• (4) Exterior SAE Power Ports
• High Gloss Fiberglass Exterior Walls
• Roof, Blackout Exterior Trim
• Vapor Bond Insulation - All-Aluminum Chassis
- All-Aluminum Tube Construction
- Breakaway Battery Kit
- 7-Way Trailer Plug
- 3500# Torsion Axle
- 2″ Hitch
- Electric Brake Axles
- Safety Chains
- Manual Crank Tongue Jack
- Aluminum Wheels
- 30-Amp Detachable Shore Cord
- 12,000 BTU LP Furnace
- 12V Power Roof Vent
- 40 Amp Converter w/Battery Charger
- Exterior LP Quick Connect
- 20# LP Tank w/Regulator & Tongue Storage
- TV/Satellite/Cable Prep
- Under Frame Amber Accent Lights

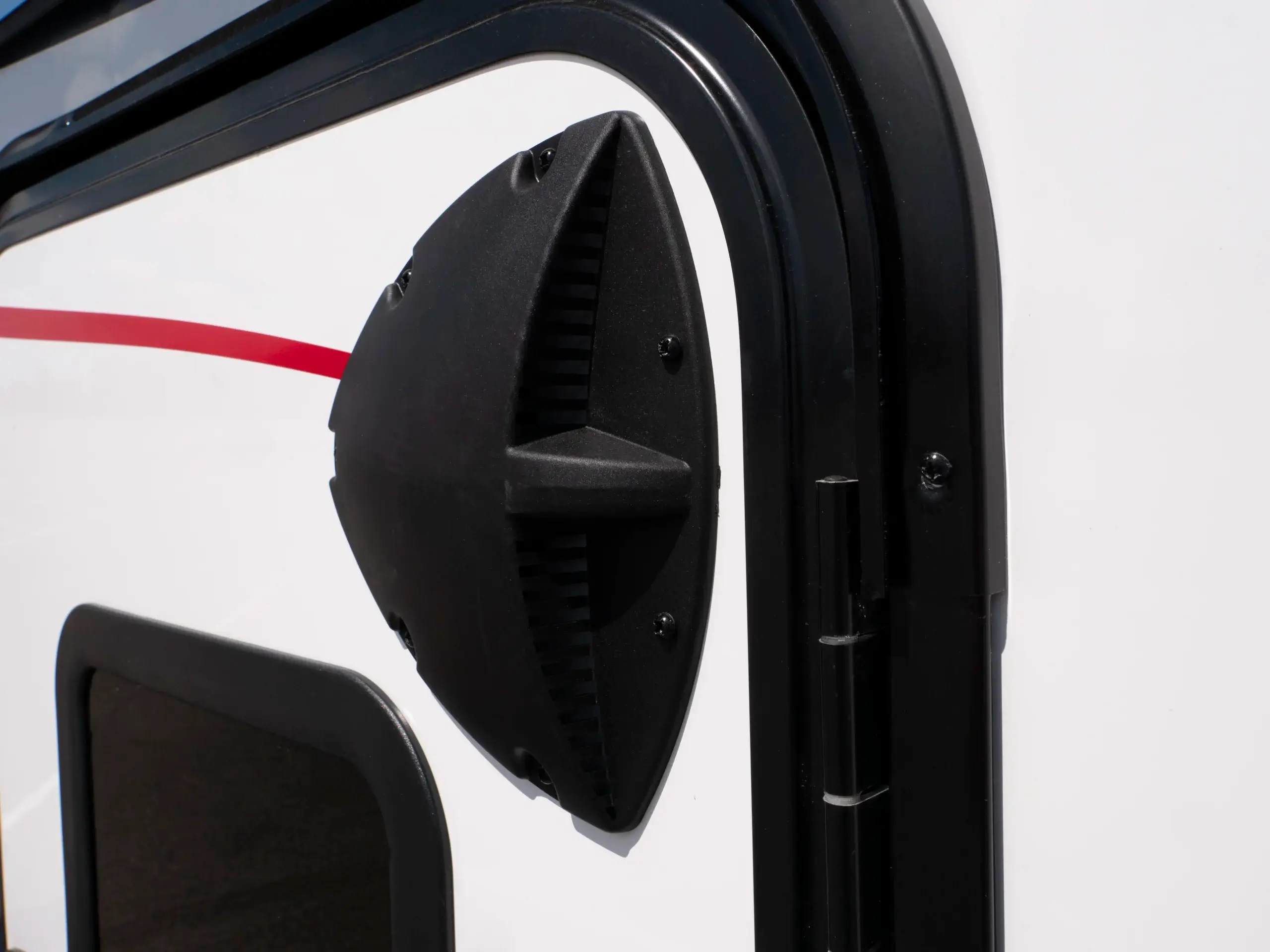

- (4) Intake/Exhaust Vents
- Exterior Locking Storage Compartment
- Battery Recessed Storage Compartment

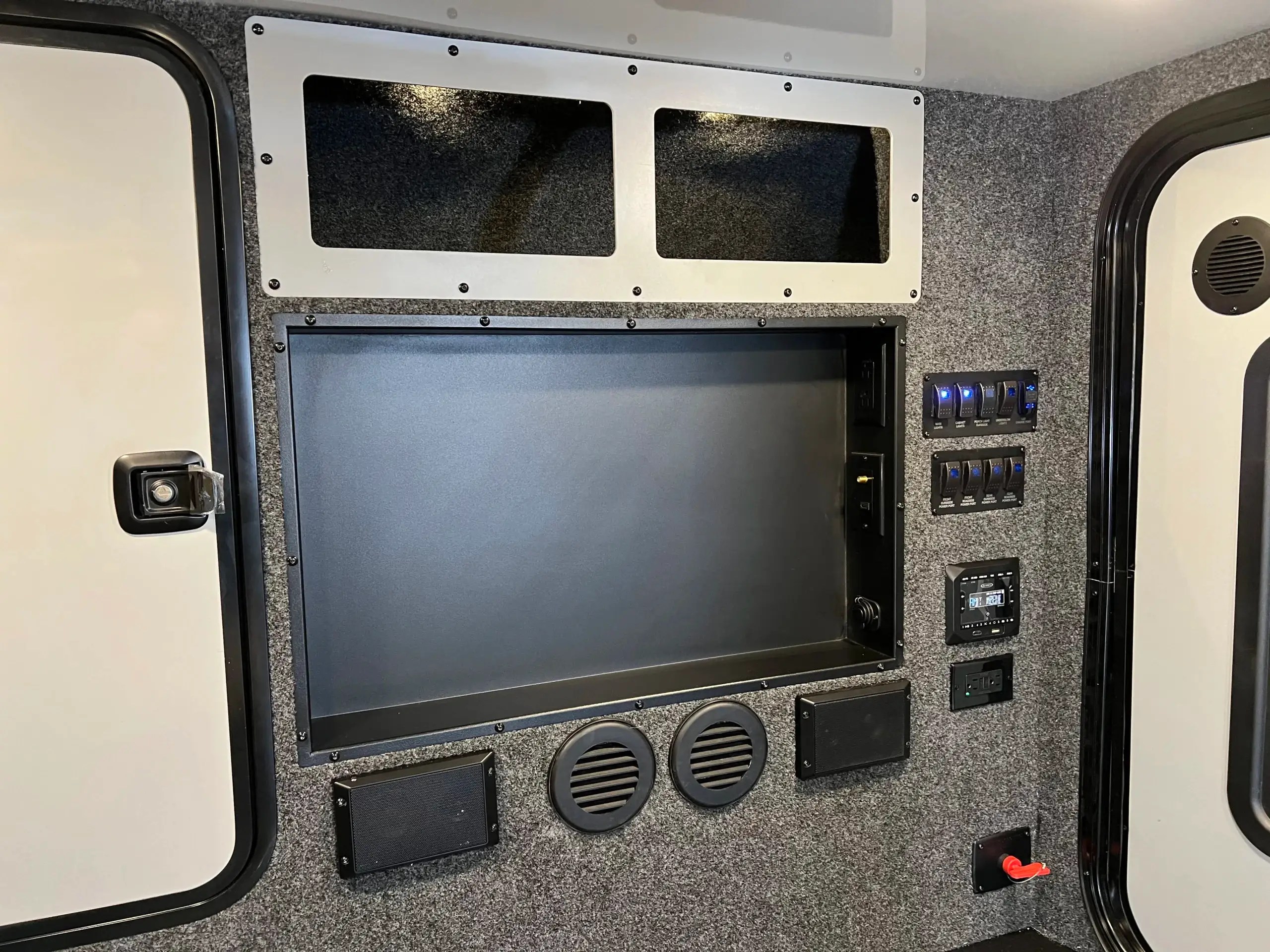

- Recessed Aluminum Cabinet

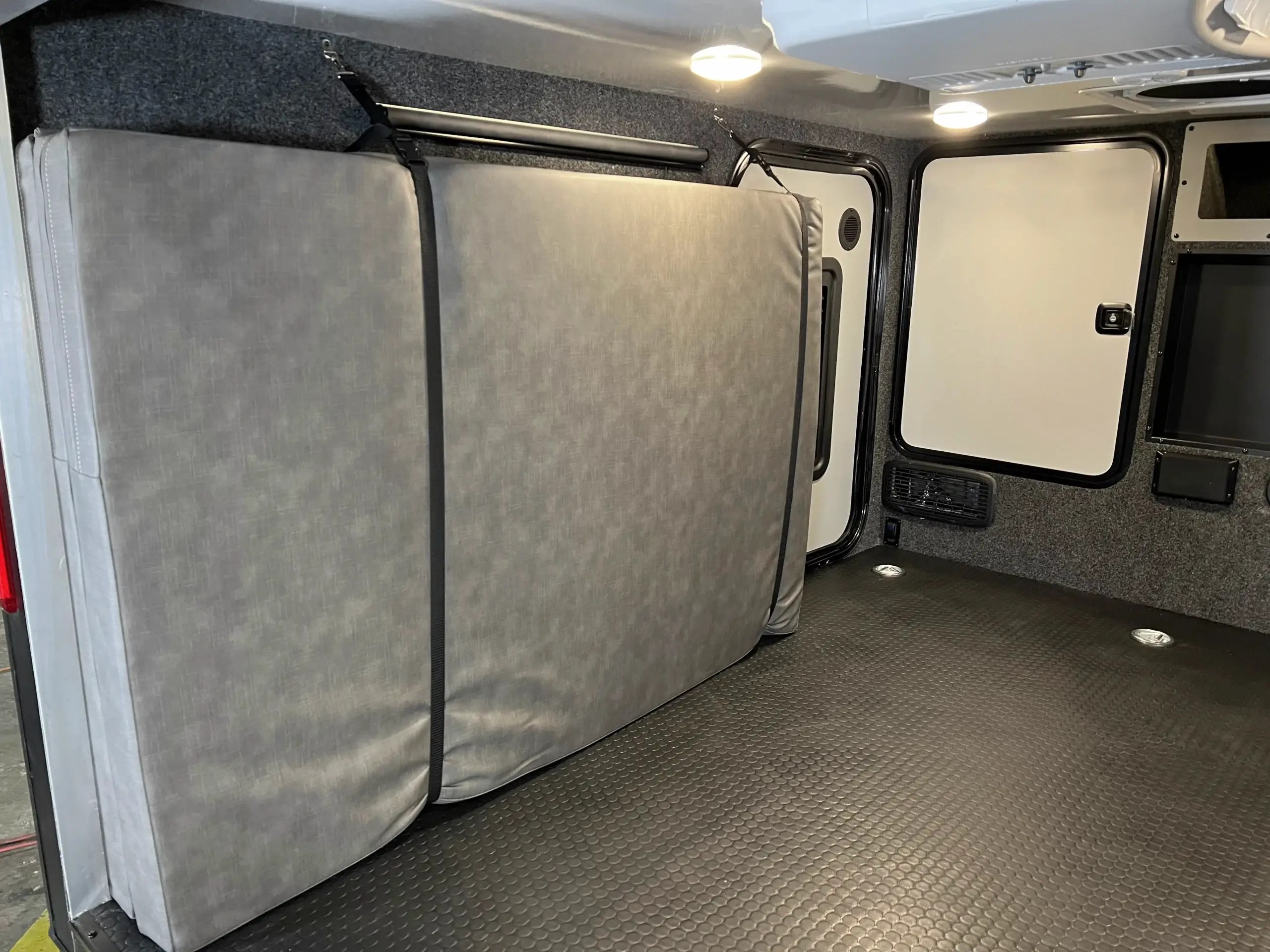

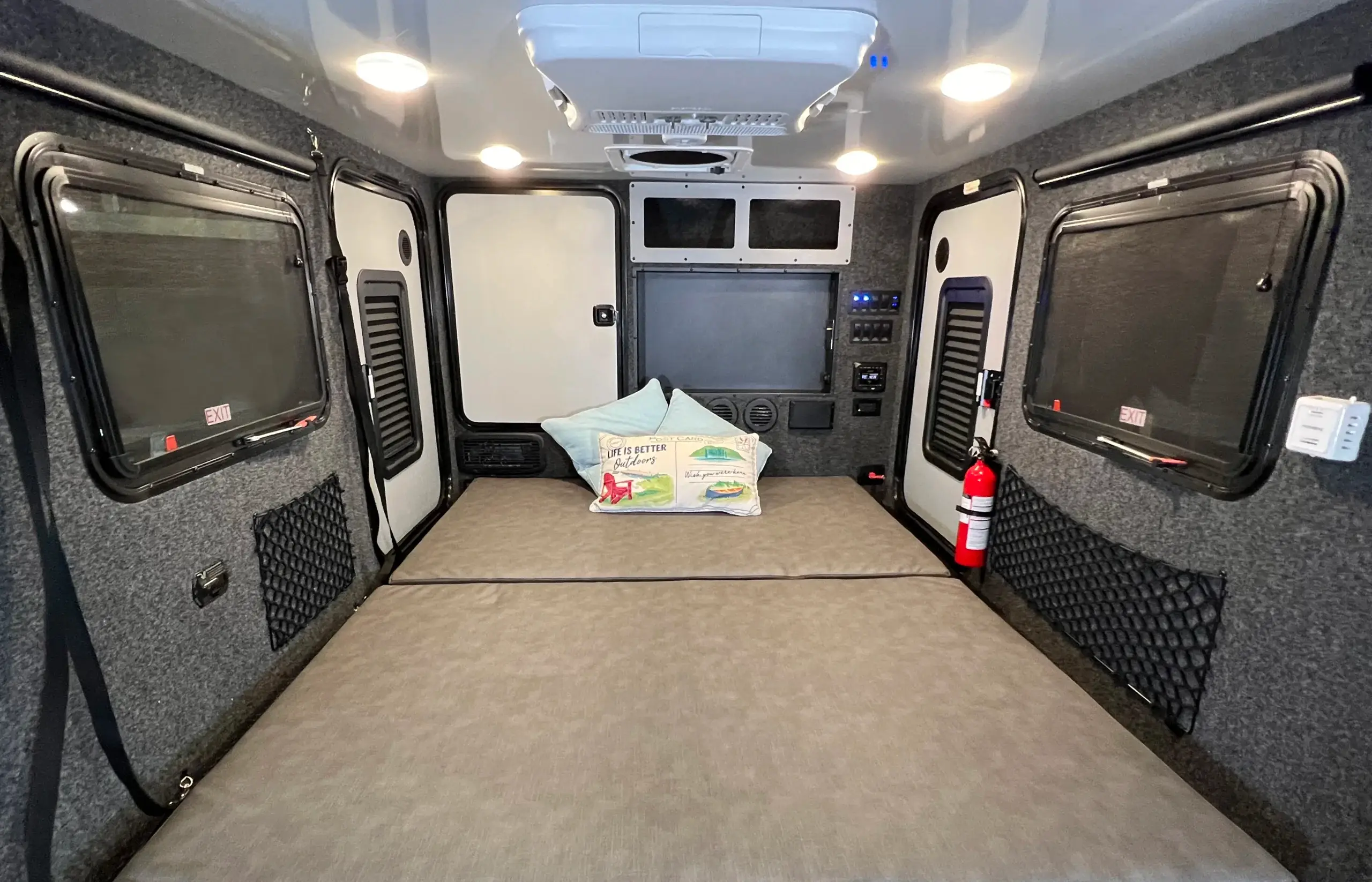

- 60″x80″x4″ Queen Mattress
- Closet/Storage Compartment
- No-Snag Wall Carpet
- 12V LED Lighting
- Rocker Style 12V Switches
- (2) Tilt-Out Tinted Windows

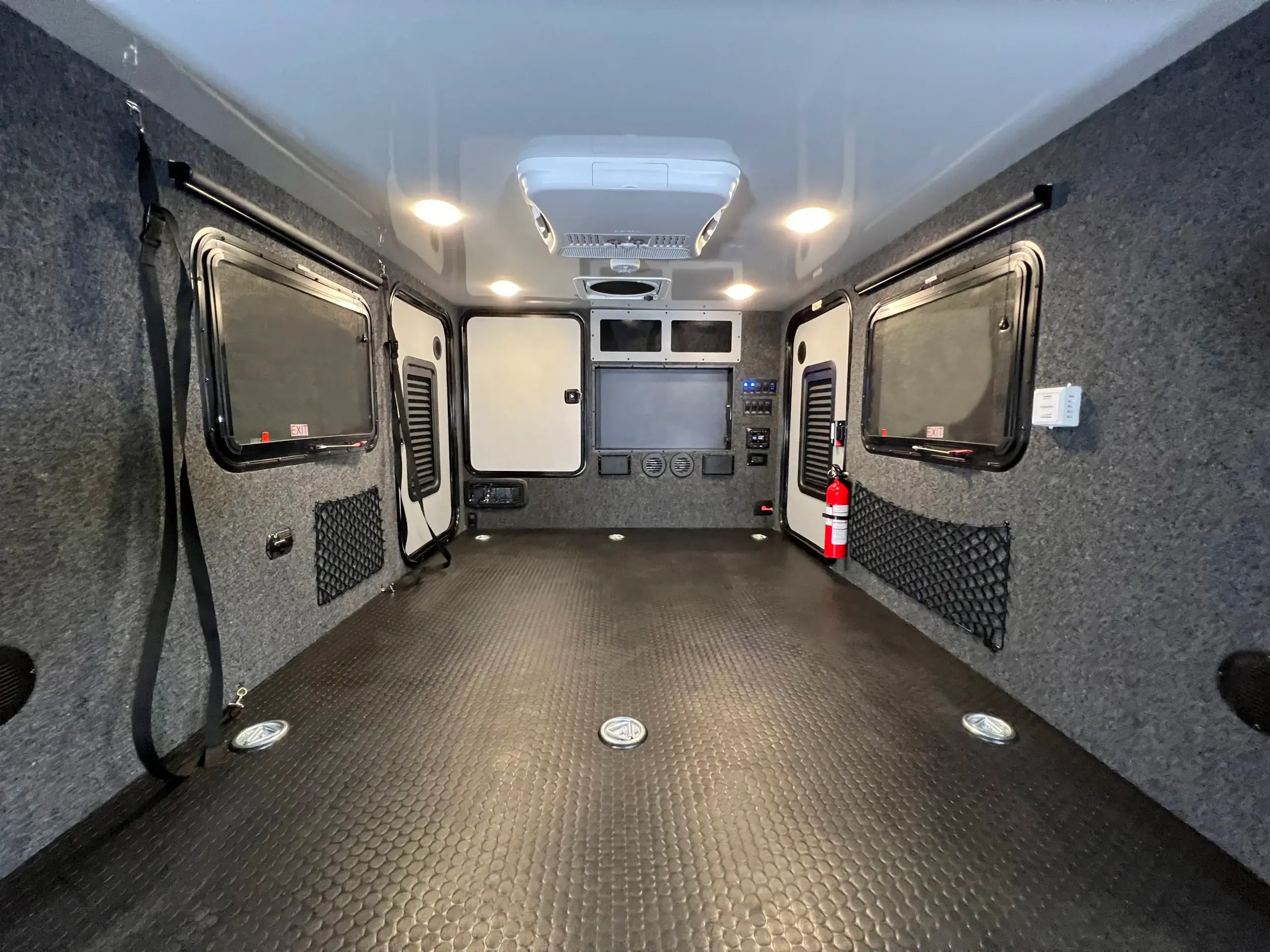

- One-Piece Black Coin Flooring
- One-Piece Fiberglass Ceiling
- AM/FM Bluetooth Stereo (2 Spkrs)

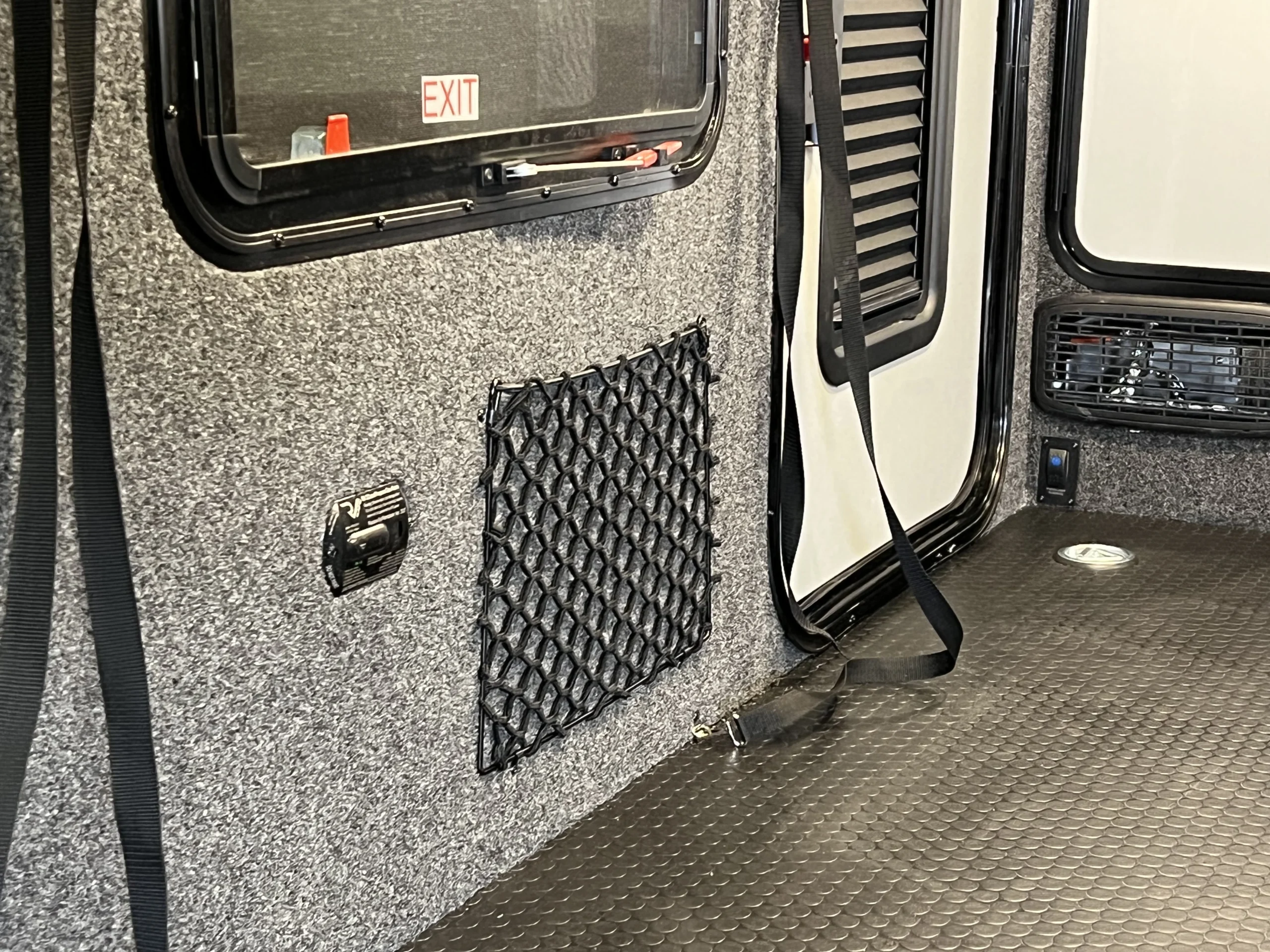

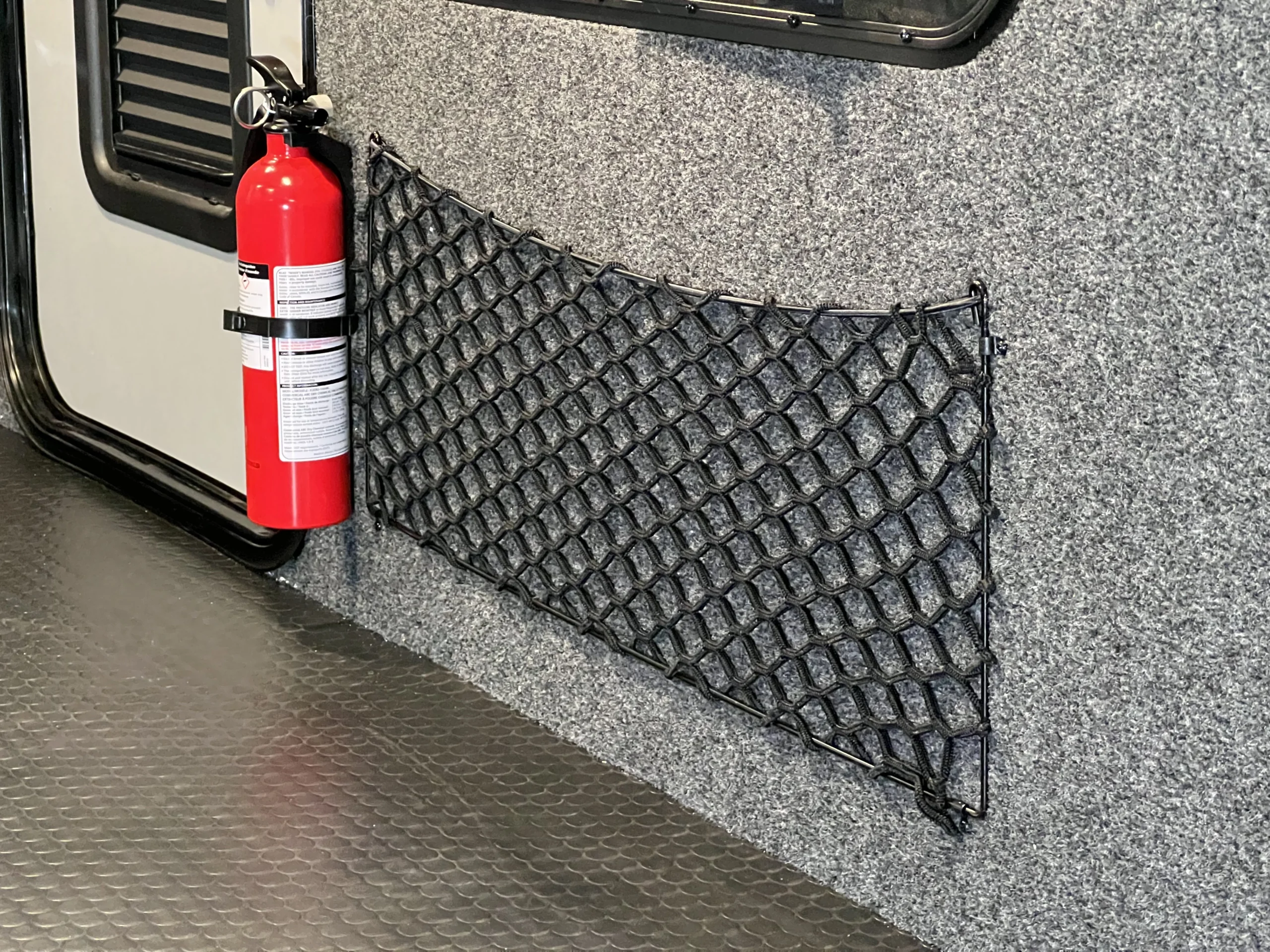

- (2) Storage Nets
- 100% Wood-Free Construction
- Hi-Gloss Fiberglass Walls
- Hi-Gloss Fiberglass One-Piece Roof
- Tri-Bond Construction
- Fully Welded Aluminum Frame
- Composite Flooring & Interior Walls
- (4) Stabilizer Jacks
- Vapor Bond Insulation
- Powdercoated Exterior Trim
- LED DOT Running Lights
- (2) Entry Doors w/Windows & Shades
- 11,000 BTU Roof Mount A/C

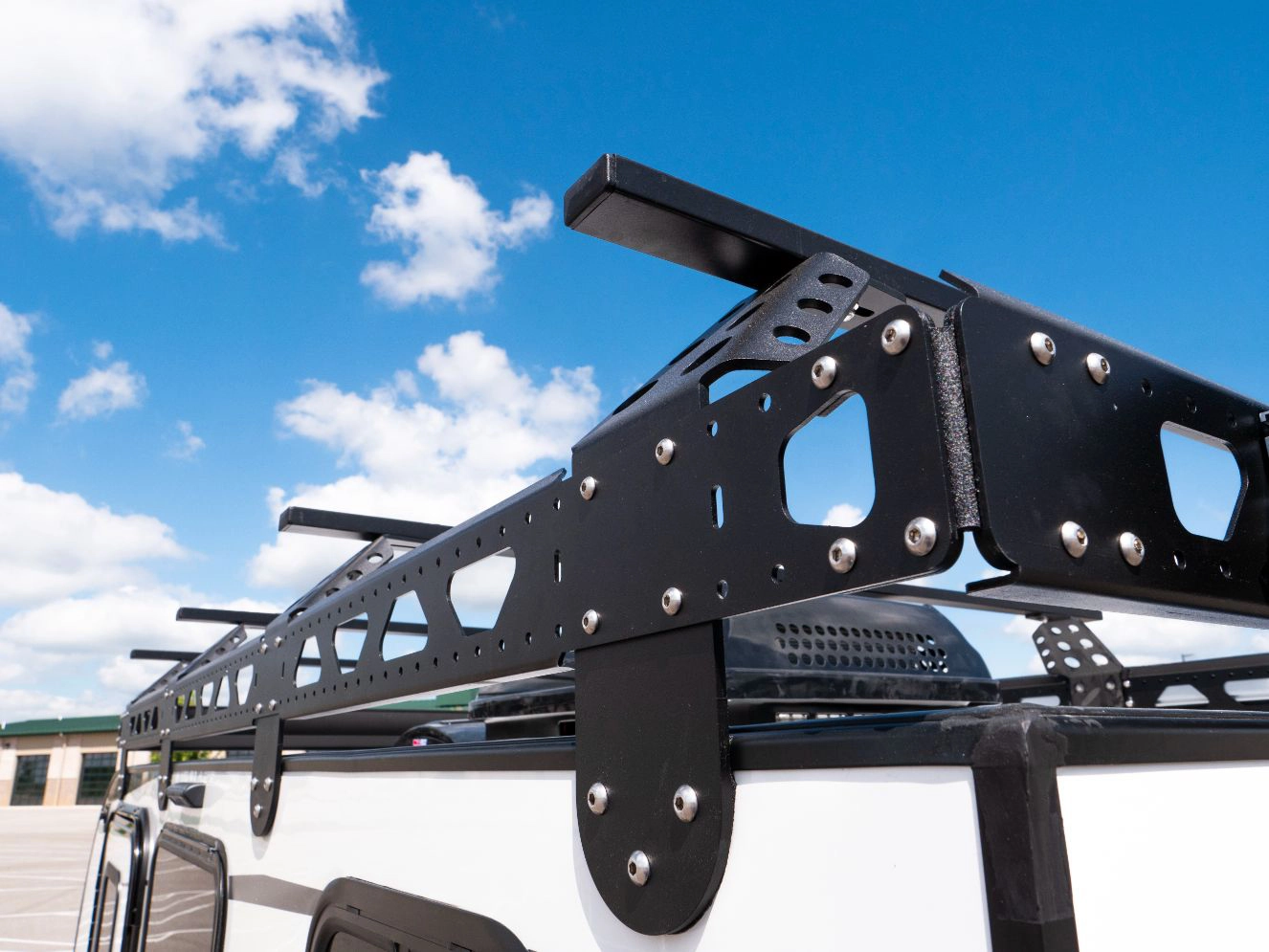

- Roof Rack System (Includes Three 74″ Crossbars)

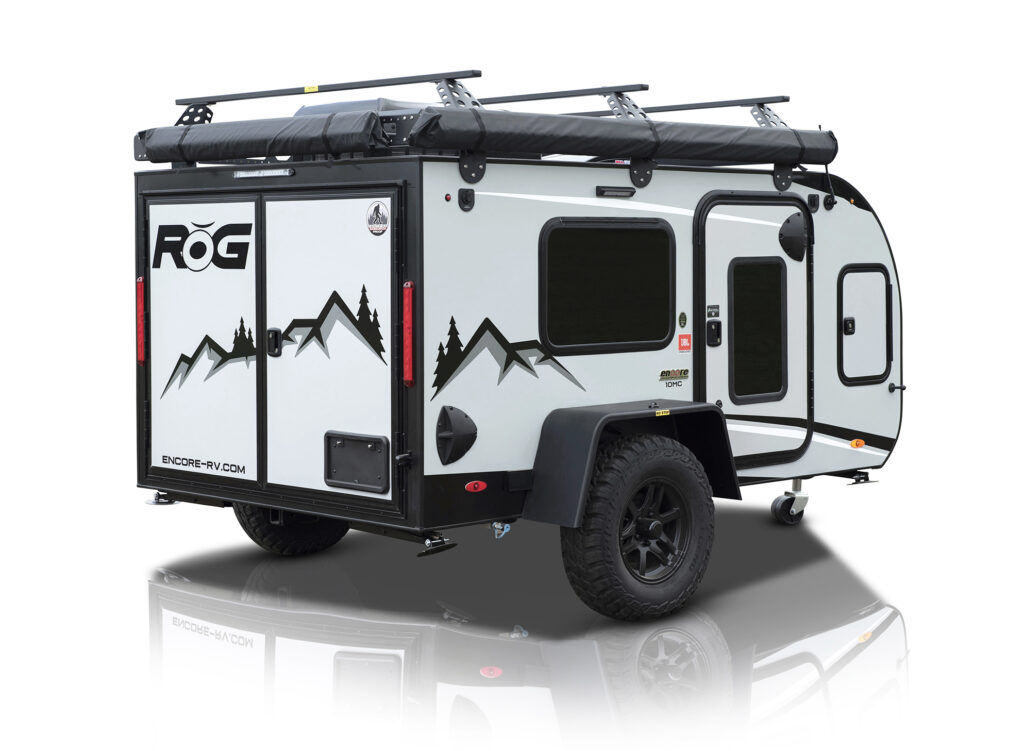

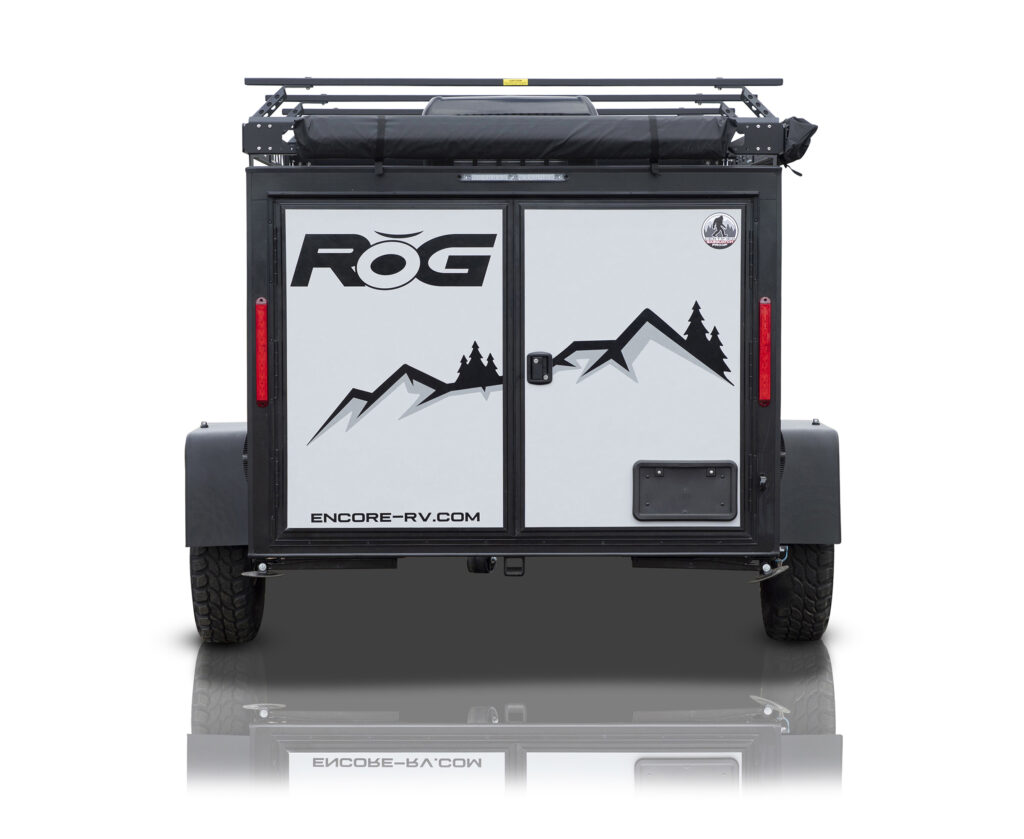

- Rear Double Doors (Replaces Rear Ramp Door)
- 8′ 2″ Side & 4′ 7″ Rear Awning (Requires Roof Rack System)
- OVS 270 degree Awning – 129 sq. ft. coverage

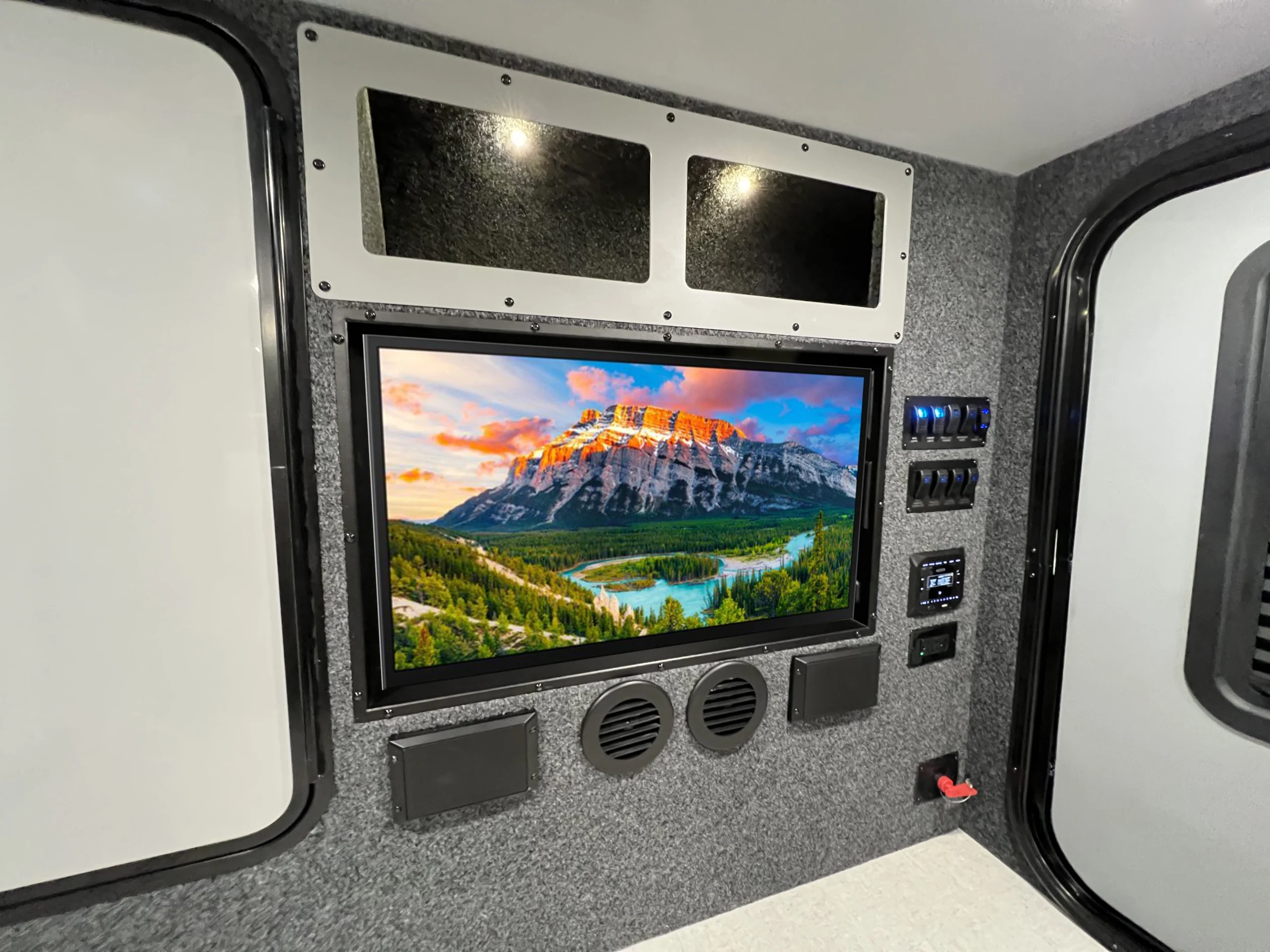

- 32″ 12V TV w/ Locking Swivel Mount & Removable HD Antenna
- Flat Grey Exterior Fiberglass
- 12V Lithium Battery 100aH (up to 3 Batteries)
- Overland Package+: Timbren Axleless Suspension w/4″ Lift, Max Coupler 360 degree Articulating Hitch and HD Fenders.
- Power-Up Package: 100aH Lithium Battery, 200-Watt Solar Panel, Battery Monitor w/Custom Bezel, (2) Extra Battery Trays
SPECIFICATIONS
| RŎG 10MC | ADVENTURE SERIES |
|---|---|
|
Dry Weight (No Options) |
1,414 lbs |
|
Dry Weight - Equipped* |
1,630 lbs |
|
Tongue Weight (no/water)** |
314 lbs |
|
Tongue Weight (w/water)** |
N/A |
|
GVWR |
3,500 lbs |
|
Torsion Axle Rating |
3,500 lbs |
|
Overall Length |
153-3/4" (12' 9-3/4") |
|
Overall Width |
95" (7' 11") |
|
Box Length (Exterior) |
118" (9' 10") |
|
Interior LQ Length |
92" (7' 8") |
|
Interior LQ Width |
69-1/2" (5' 9-1/2") |
|
Interior LQ Height |
47-1/2" (3' 11-1/2") |
|

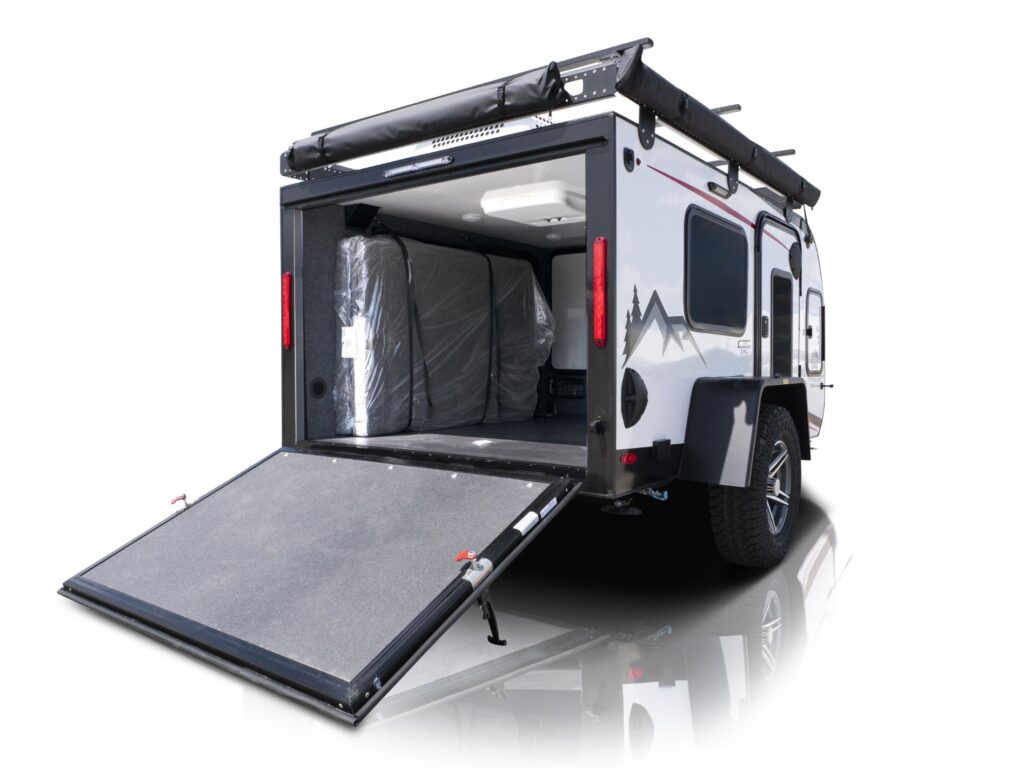

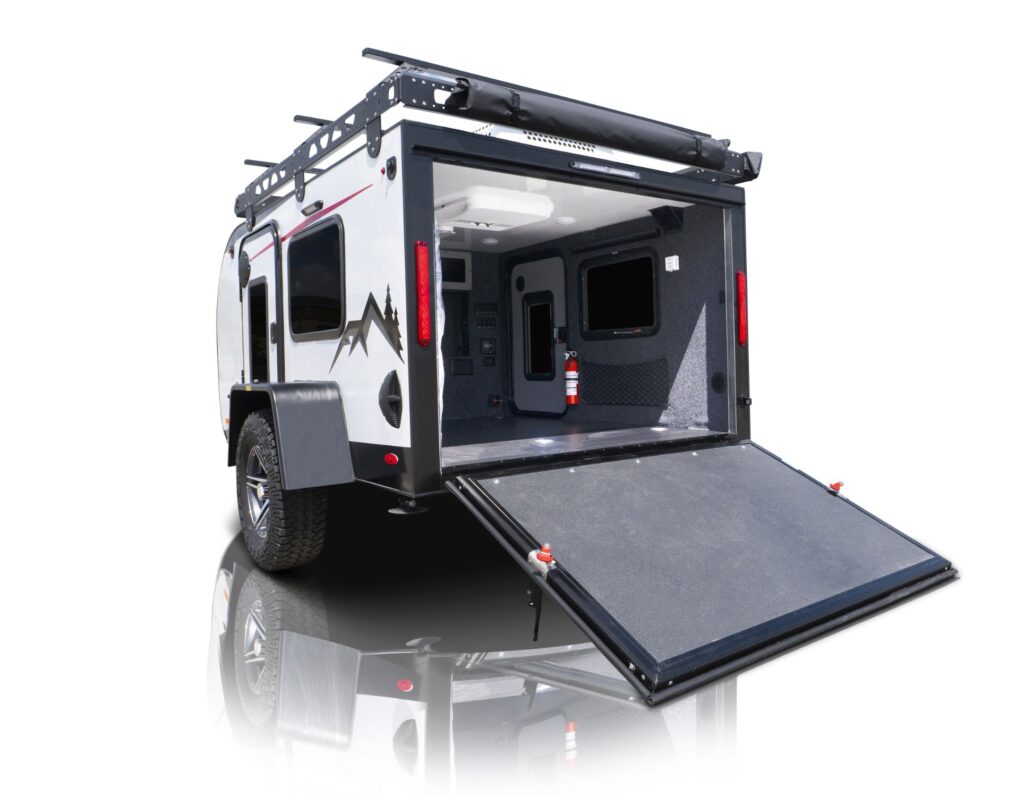

Ramp Door Opening |
64" x 45" |
|
Ramp Door Platform |
44" x 63" |
|
Overall Height (w/Roof Rack) |
81-1/4" (6' 9-1/4") |
|
Overall Height (w/A/C) |
80" (6' 8") |
|
Overall Height (w/Roof Vent) |
74" (6' 2"') |
|
Ground Clearance |
14-1/2" |
|
Roof Rack Capacity*** |
300 lbs |
|

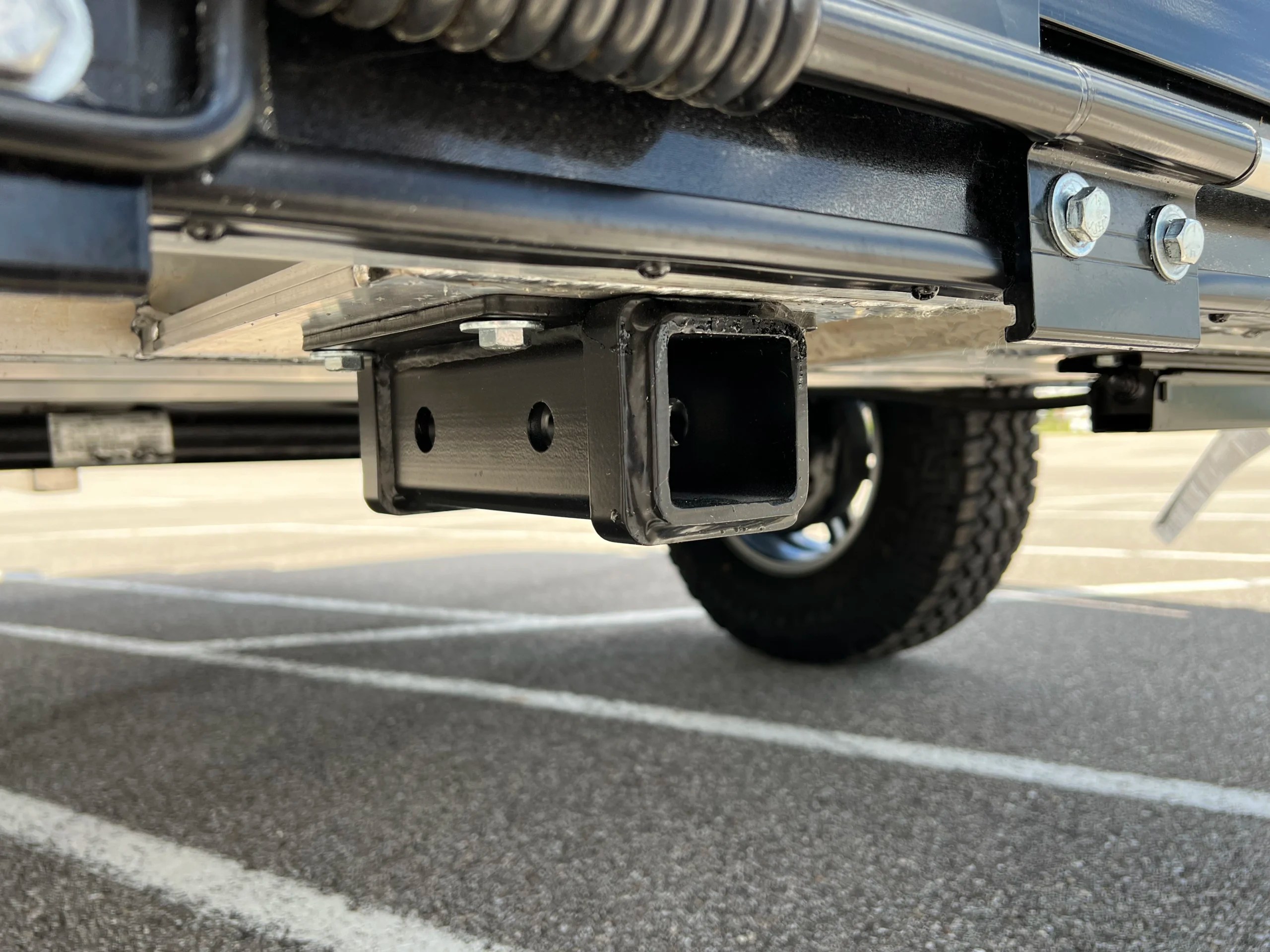

Rear Receiver Capacity |
200 lbs |
|
Coupler |
2" |
|
Hitch Ball Height |
18-1/2" |
|
Tires |
ST235/75R15 LRC |
|
Wheels |
15" x 6" |
|
Lug Pattern |
5 x 4-1/4" |
|
Spare Tire |
Yes |
|
Electric Brakes |
Yes |
|
7-Way Plug |
Yes |
|
Battery |
Requires AGM or Lithium-Non Vented Batt Compartment**** |
|
Fresh Water Tank |
N/A |
|
Refer |
N/A |
|
Furnace Size (BTU's) |
18,000 BTU |
|
Roof Top A/C (Option) |
11,000 BTU |
|
OPTIONS |
|
|
Roof Rack |
54 lbs |
|
Roof Top A/C |
102 lbs |
|
Awning Package (2 Awnings) |
37 lbs |
|
12V Lithium Battery |
23 lbs |
|
Power Up Package |
49 lbs |
|
Overland Package+ |
125 lbs |
*Dry Weight Equipped includes all available factory options.
**Tongue Weight includes the following options (Roof Rack, A/C, & Awning Package)
***Roof Rack rated at 100 lbs (45 kg) per crossbar – Dynamic Rating – Rolling Down Road
****You cannot use a standard wet cell deep cycle battery

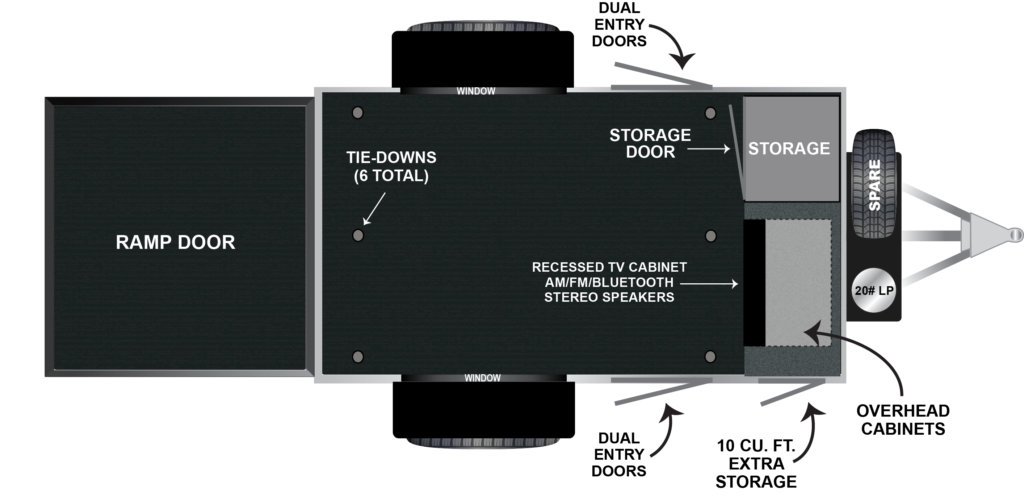

FLOORPLAN
GraphicS Color Options
PRICING
10MC Adventure Series MSRP starting at
$
18,833
