VENŪ Adventure Trailer
VENŪ 10KB Adventure Trailer
- Aluminum Chassis
- All-Aluminum Tube Construction
- Breakaway Battery Kit
- 7-Way Trailer Plug
- 3500# Torsion Axle
- Electric Brake Axles
- Safety Chains
- Manual Crank Tongue Jack
- ST205/75R15 Tires
- Aluminum Wheels
- Full Size Spare & Mount
- 30 Amp Detachable Shore Cord
- StoneCast Undercount Kitchen Sink
- Commercial Grade Faucet – Two Tone
- 12V Power Port
- Exterior Scare Lights C/S & R/S
- 12V Power Roof Vent
- 40 Amp Converter w/Battery Charger
- On-Demand Water System – 21 Gallons
- Bluetooth Stereo (4 Spkrs/2 Zones)
- USB Charge Ports
- Under Frame Amber Accent Lights
- Aluminum Cabinetry

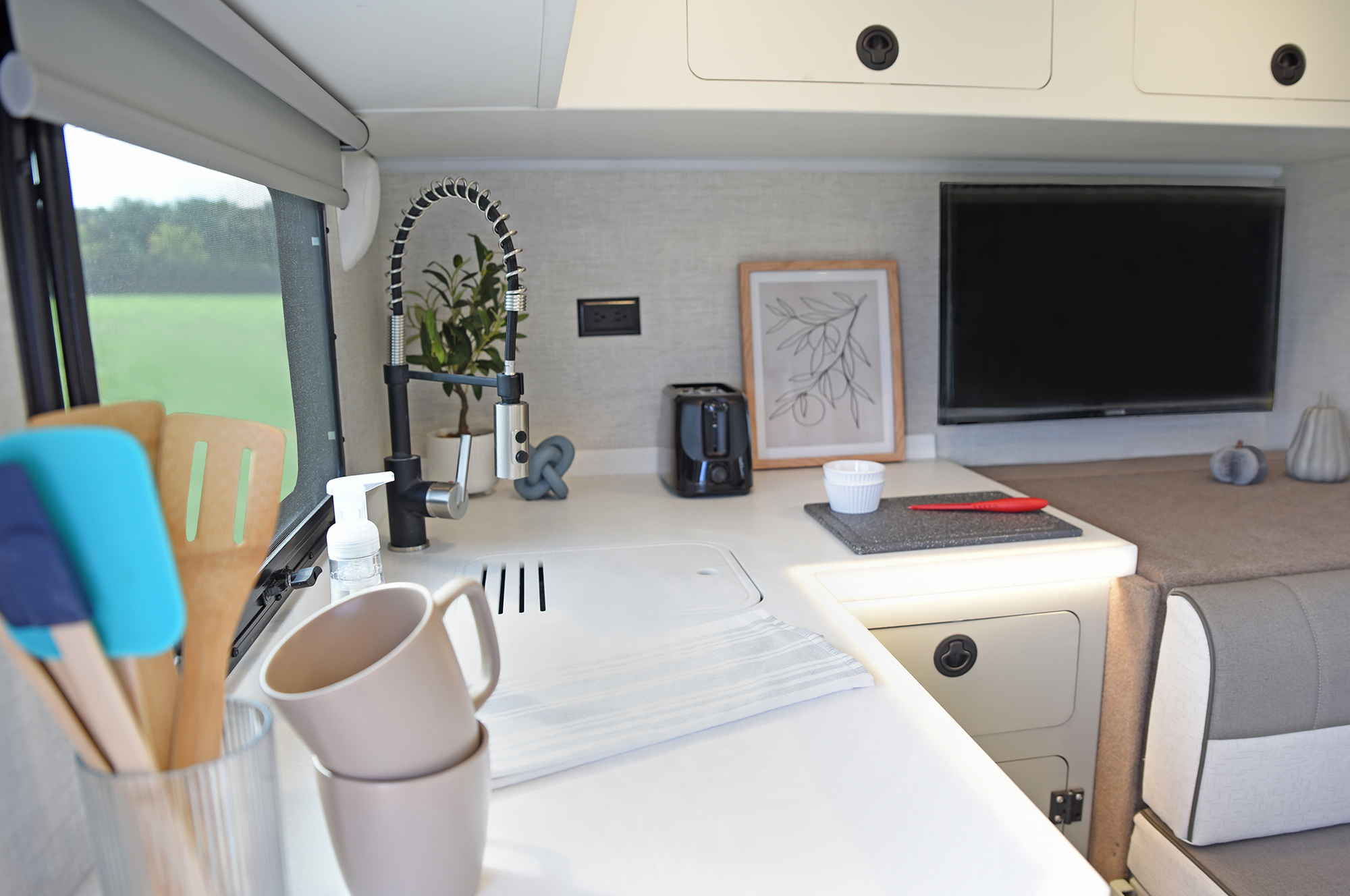

- Solid Surface Kitchen Counters
- L-Base Kitchen Cabinet

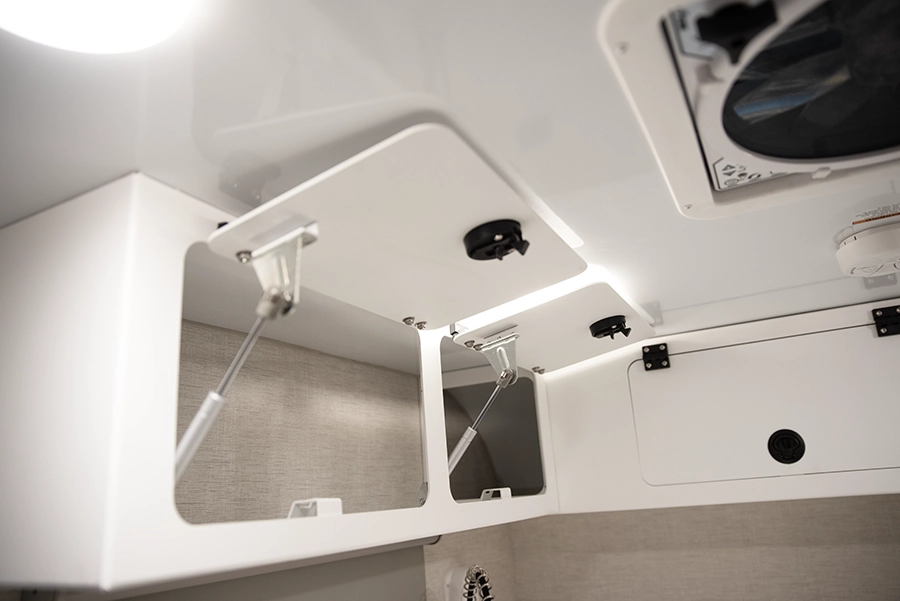

- L-Base Kitchen Overhead Cabinet

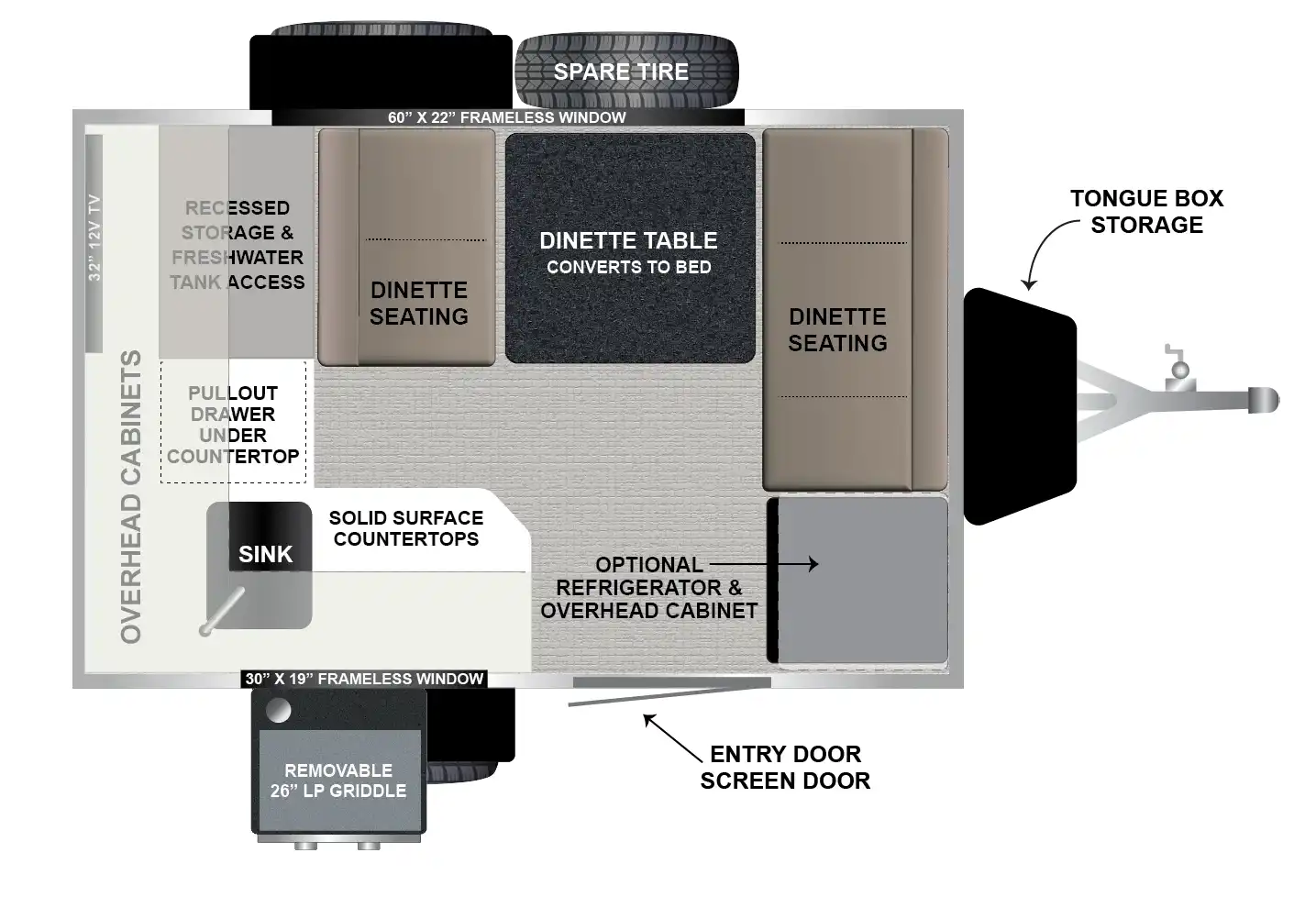

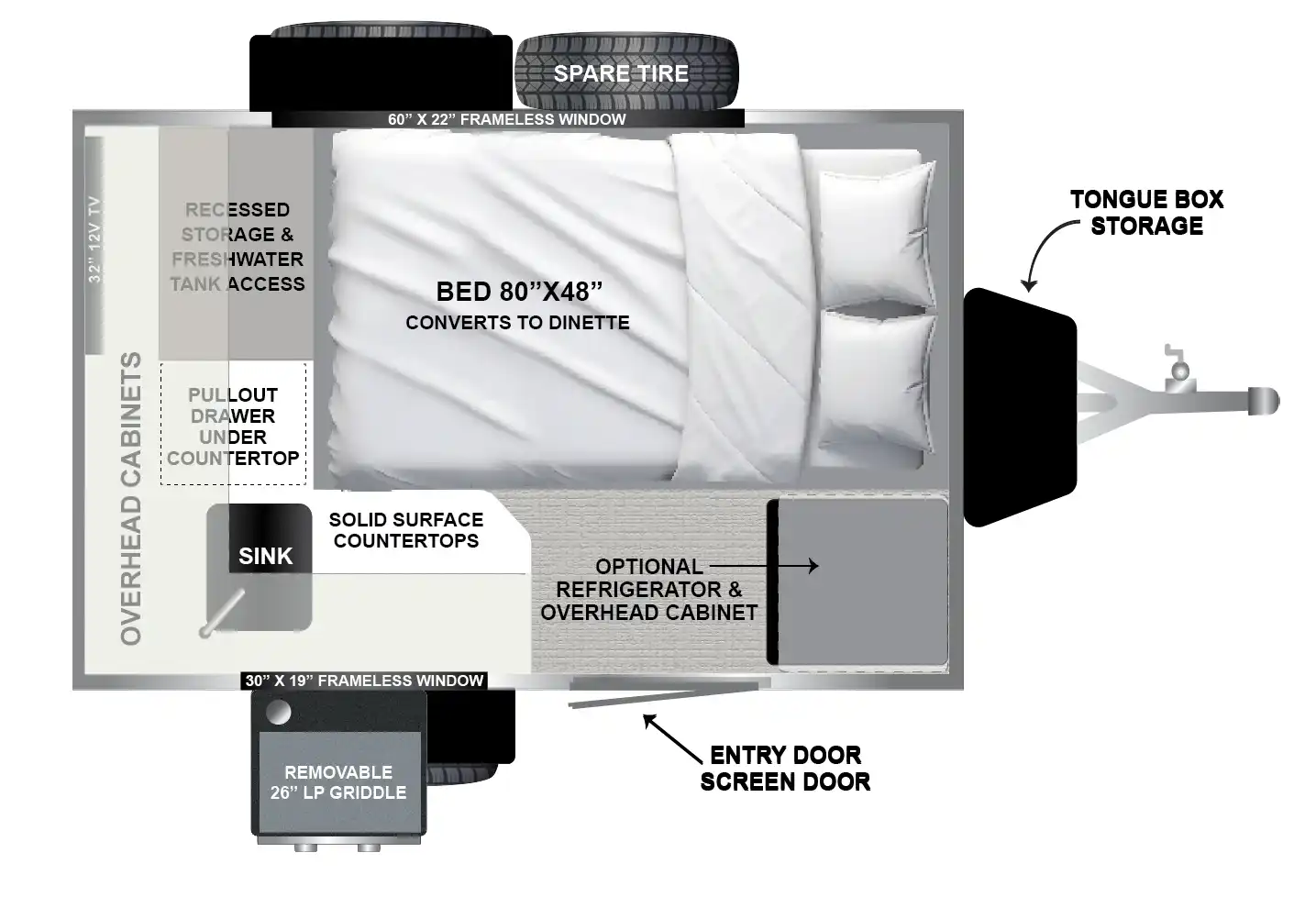

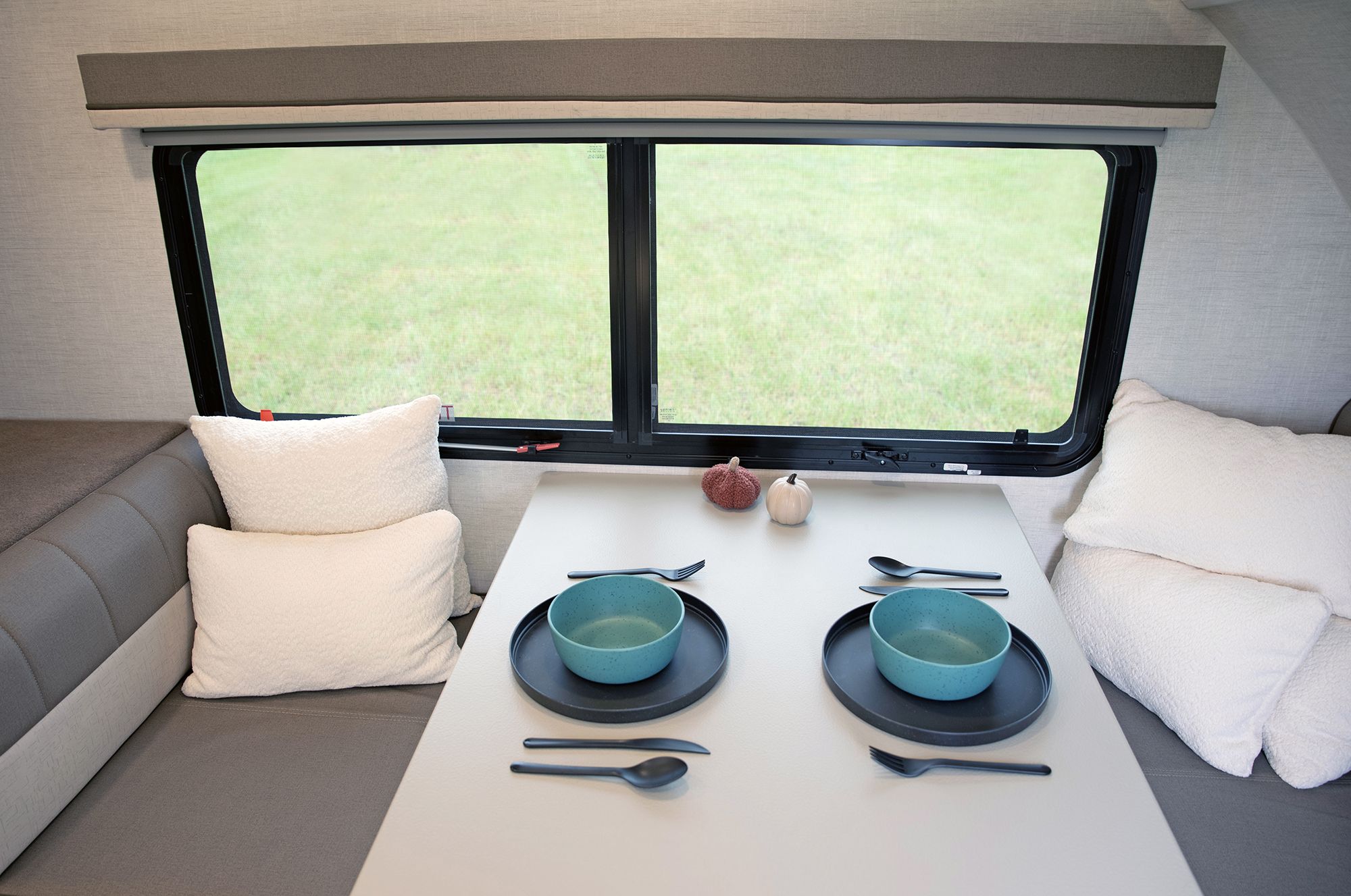

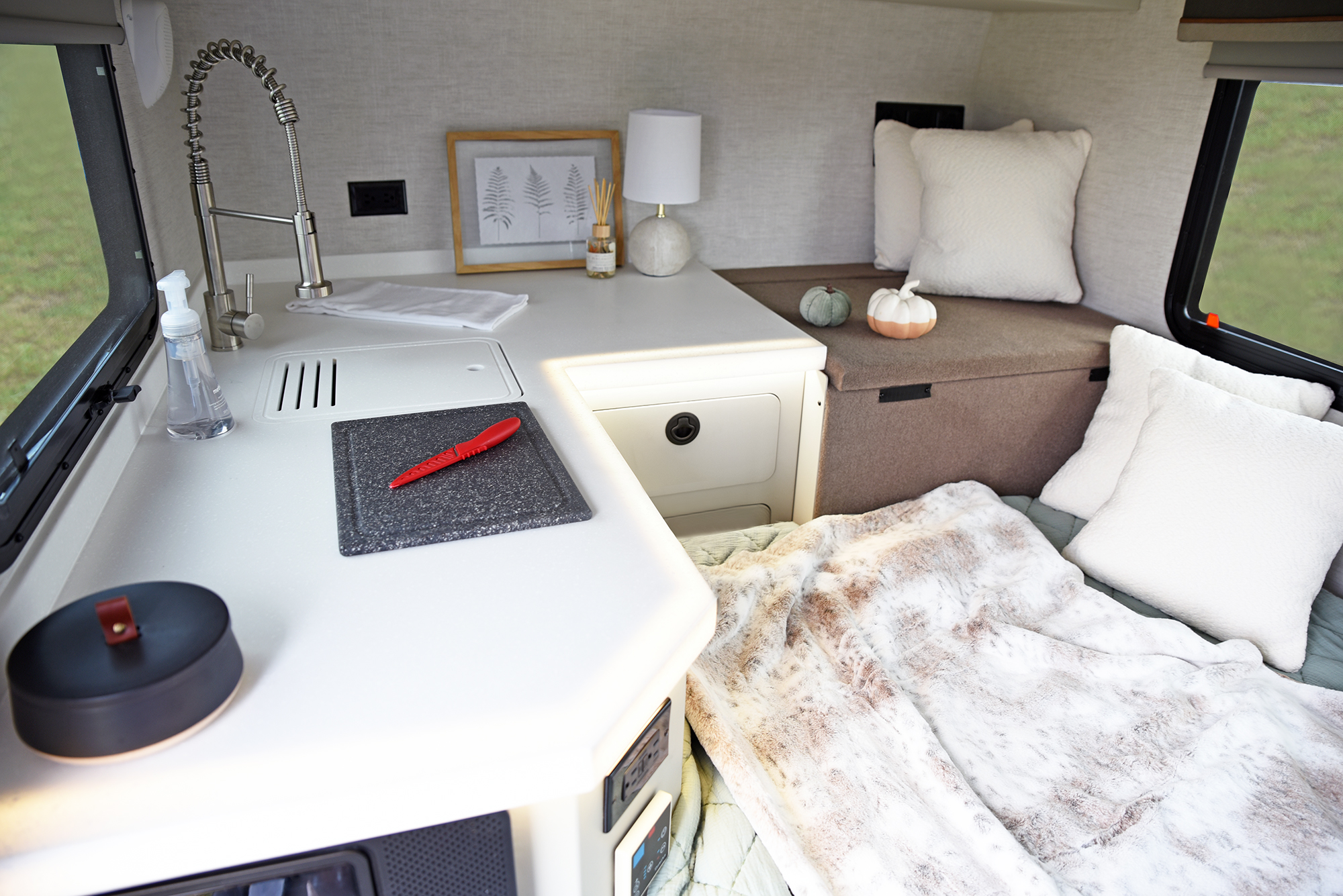

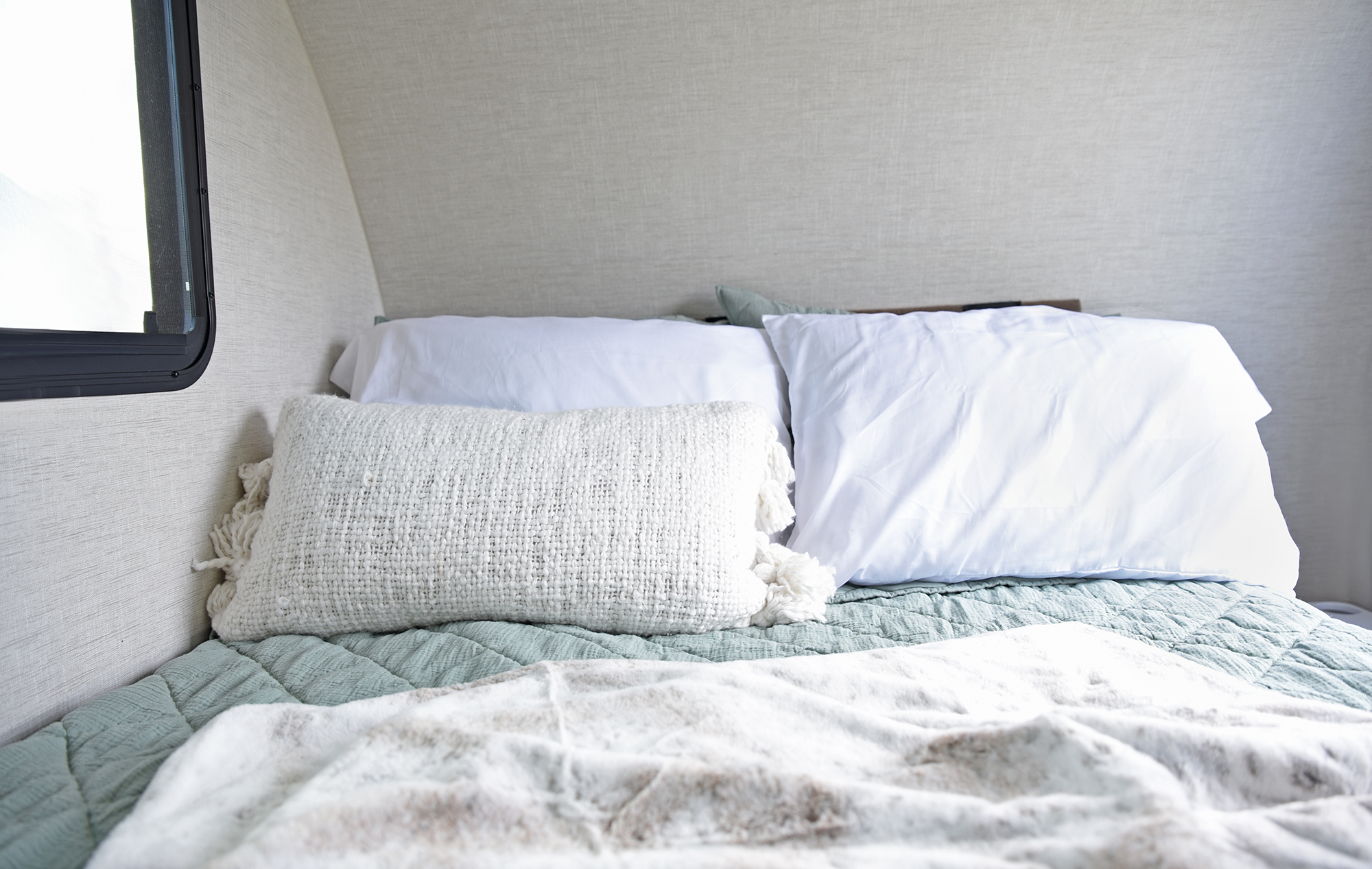

- Dinette – Converts to Bed
- 12V LED Lighting
- TV/Satellite/Cable/HDMI Prep
- Rocker-Style 12V Switches
- (2) Frameless Windows
- One-Piece Luxe Vinyl Flooring
- One-Piece Fiberglass Ceiling
- 100% Wood Free Construction
- Tweed Interior Walls/Azdel
- Hi-Gloss Fiberglass One-Piece Roof
- Tri-Bond Construction
- Fully Welded Aluminum Frame
- Composite Flooring & Interior Walls
- (4) Stabilizer Jacks
- Vapor Bond Insulation
- Powercoated Exterior Trim
- LED DOT Running Lights
- Entry Door w/Window & Shade
- VENŪ Lifestyle Package (Mandatory)
- 15K BTU Basement A/C w/ 12K BTU Heat Pump

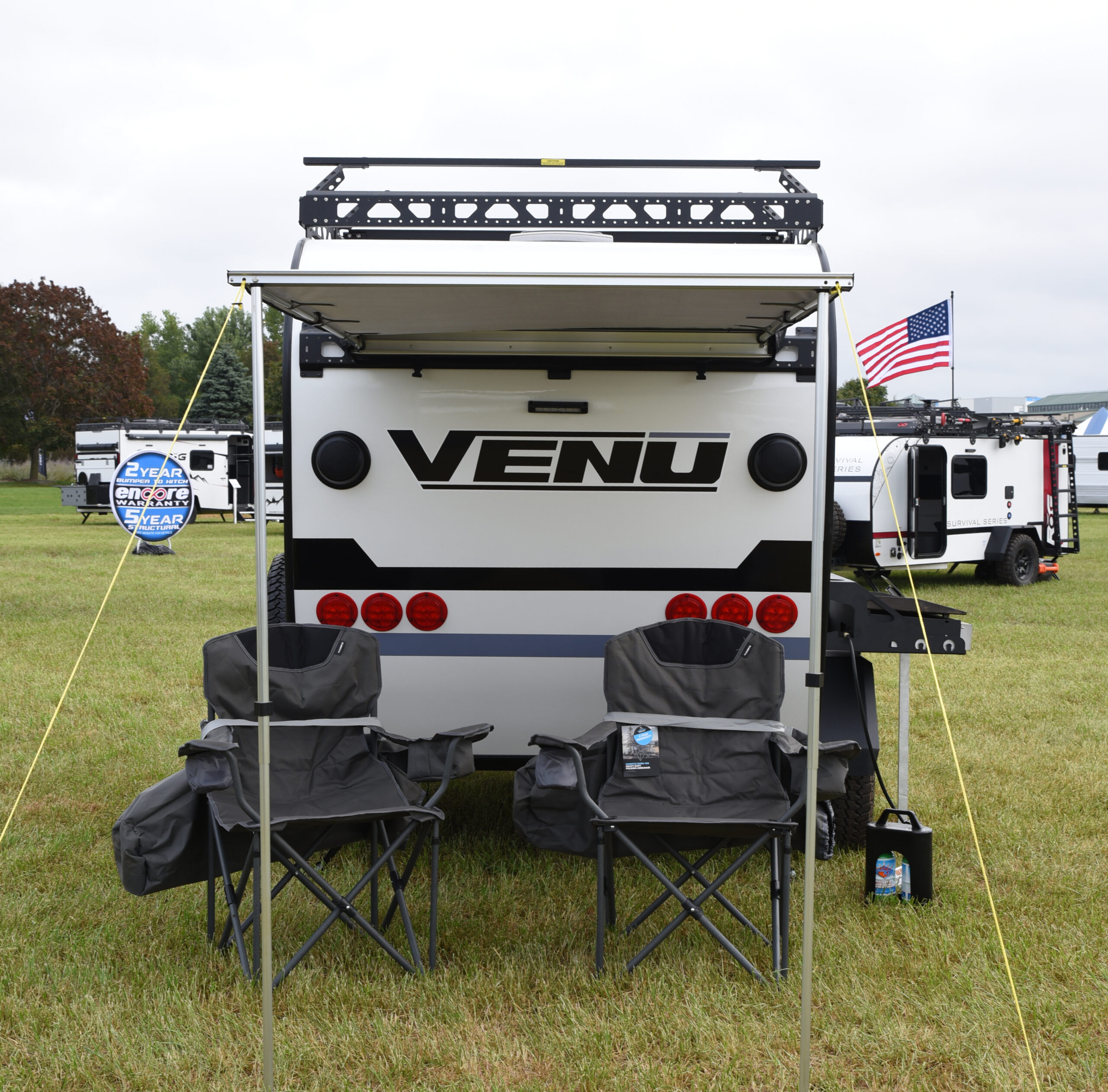

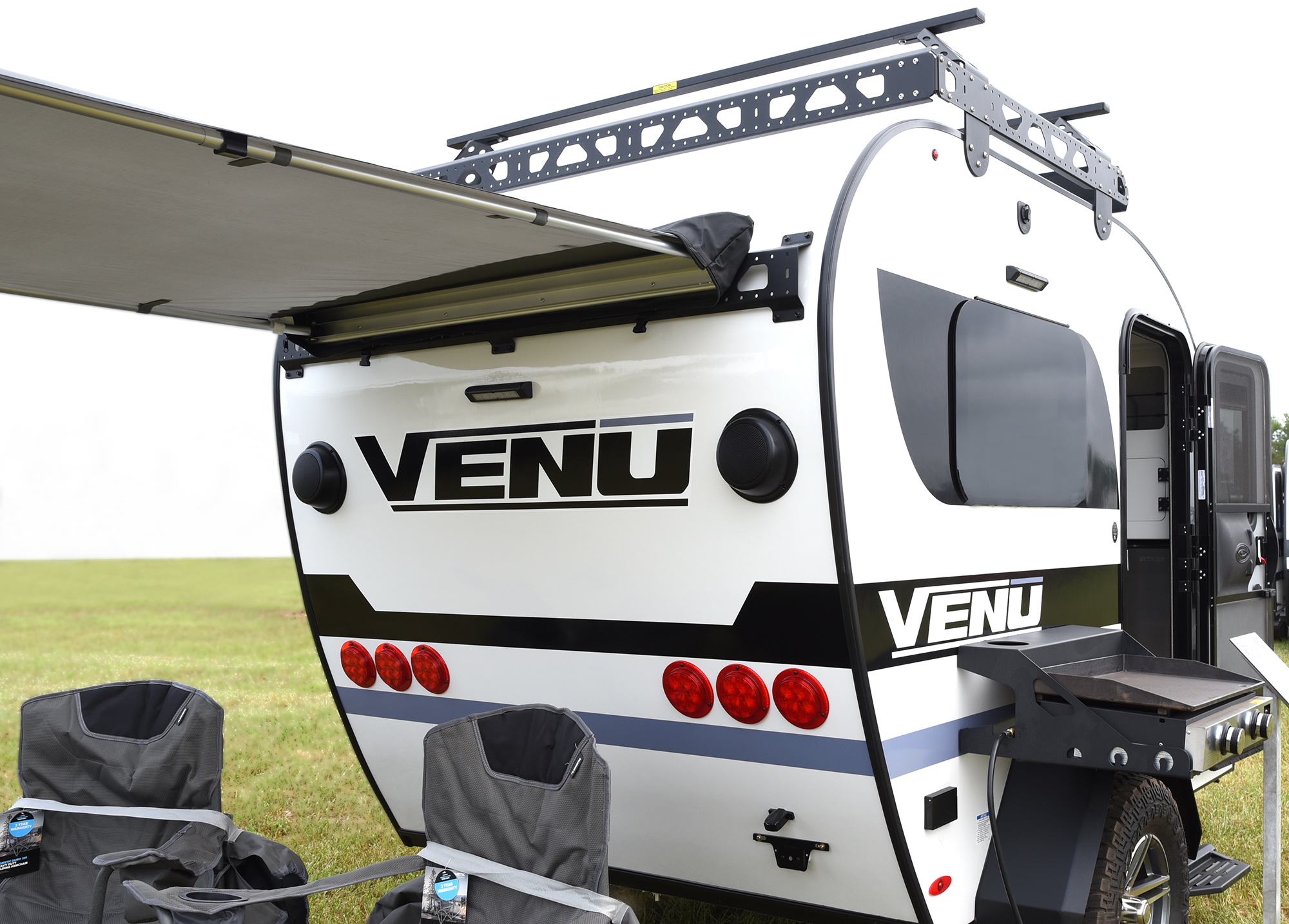

- 4′ 7″ Rear Awning w/ Bracket
- 3.3 Cubic Ft 12V Refer w/ Overhead Cabinet
- 32″ 12V TV w/Locking Swivel & HD Antenna
- 12V Lithium Battery 100aH (Max of 3)
Off-Road Package: - ST235/75R15 Off-Road Tires
- Heavy-Duty/Walk-On Fenders
- Roof Rack System – (2) Crossbars (200# Cap)
- (2) 12V Power Parts @ Roof Rack w/ SwitchesŪ
SPECIFICATIONS
| VENŪ 10KB | Imperial | Metric |
|---|---|---|
|
Dry Weight (No Options) |
1,585 lbs |
718 kg |
|
Dry Weight - Equipped* |
1,854 lbs |
840 kg |
|
Tongue Weight (no/water)** |
291 lbs |
132 kg |
|
Tongue Weight (w/water)** |
257 lbs |
116 kg |
|
GVWR |
3,500 lbs |
1,587 kg |
|
Torsion Axle Rating |
3,500 lbs |
1,587 kg |
|
Overall Length |
164-1/2" (13' 8-1'2") |
4.17 Meters |
|
Overall Width |
95" (7' 11") |
2.41 Meters |
|
Box Length (Exterior) |
118" (9' 10") |
2.99 Meters
|
|
Interior Floor Length |
n/a |
n/a |
|
Interior LQ Width |
70" (5' 10") |
1.77 Meters |
|
Interior LQ Height |
70-1/2" (5' 10-1/2") |
1.79 Meters |
|
Interior Bunk Length |
80" (6' 8") |
2.03 Meters |
|
Interior Bunk Height |
n/a |
n/a |
|
Dinette Bunk Dimensions |
47" x 79" |
1.19 x 2.01 Meters |
|
Overall Height (w/Roof Rack) |
104" (8' 8") |
2.64 Meters) |
|
Overall Height (w/A/C) |
102-3/4" (8' 6-3/4") |
2.60 Meters |
|
Overall Height (w/Roof Vent) |
102-1/2" (8' 6-1/2") |
2.60 Meters |
|
Roof Rack Capacity*** |
200 lbs |
227 kg |
|
Rear Receiver Capacity |
n/a |
91 kg |
|
Coupler |
2" |
2" |
|
Hitch Ball Height |
18-1/2" |
44.45 CM |
|
Tires |
ST235/75R15 LRC |
ST235/75R15 LRC |
|
Wheels |
15" x 6" |
15" x 6" |
|
Lug Pattern |
5 x 4-1/4" |
5 x 4-1/4" |
|
Spare Tire |
Yes |
Yes |
|
Electric Brakes |
Yes |
Yes |
|
7-Way Plug |
Yes |
Yes |
|
Battery |
Requires AGM or Lithium - |
Non Vented Batt Compartment**** |
|
Fresh Water Tank |
21 Gallons |
79.5 Liters |
|
Refer Size - Inside |
3.3 Cubic Feet |
93.45 Liters |
|
Furnace Size (BTU's) |
11,000 BTU |
11,000 BTU |
|
A/C (Option) |
9,000 BTU |
9,000 BTU |
OPTION WEIGHTS: |
|
|
|
Roof Rack |
33 lbs |
38.1 kg |
|
A/C |
61 lbs |
46 kg |
|
32" 12V TV w/Locking Mount |
12 lbs |
5.4 kg |
|
Front O/H Cabinet |
13 lbs |
5.9 kg |
|
12V Lithium Battery |
23 lbs |
10.4 kg |
|
2 HD Fenders |
25 lbs |
11.3 kg |
|
(2) 12V Power Ports |
1 lbs |
0.5 kg |
|
Rear Awning and Bracket |
17 lbs |
7.7 kg |
|
3.3 Cubic Foot Refer |
23 lbs |
10.4 kg |
*Dry Weight Equipped includes all available factory options.
**Tongue Weight includes the following options (Roof Rack, A/C, TV, & Off-Grid Ladder)
***Roof Rack rated at 100 lbs (45 kg) per crossbar – Dynamic Rating – Rolling Down Road
****You cannot use a standard wet cell deep cycle battery
Graphic Color Options
Watch the VENŪ 10KB Training Video to learn more!
PRICING
VENŪ 10KB MSRP starting at
$
21,465
