RŎG 14TH

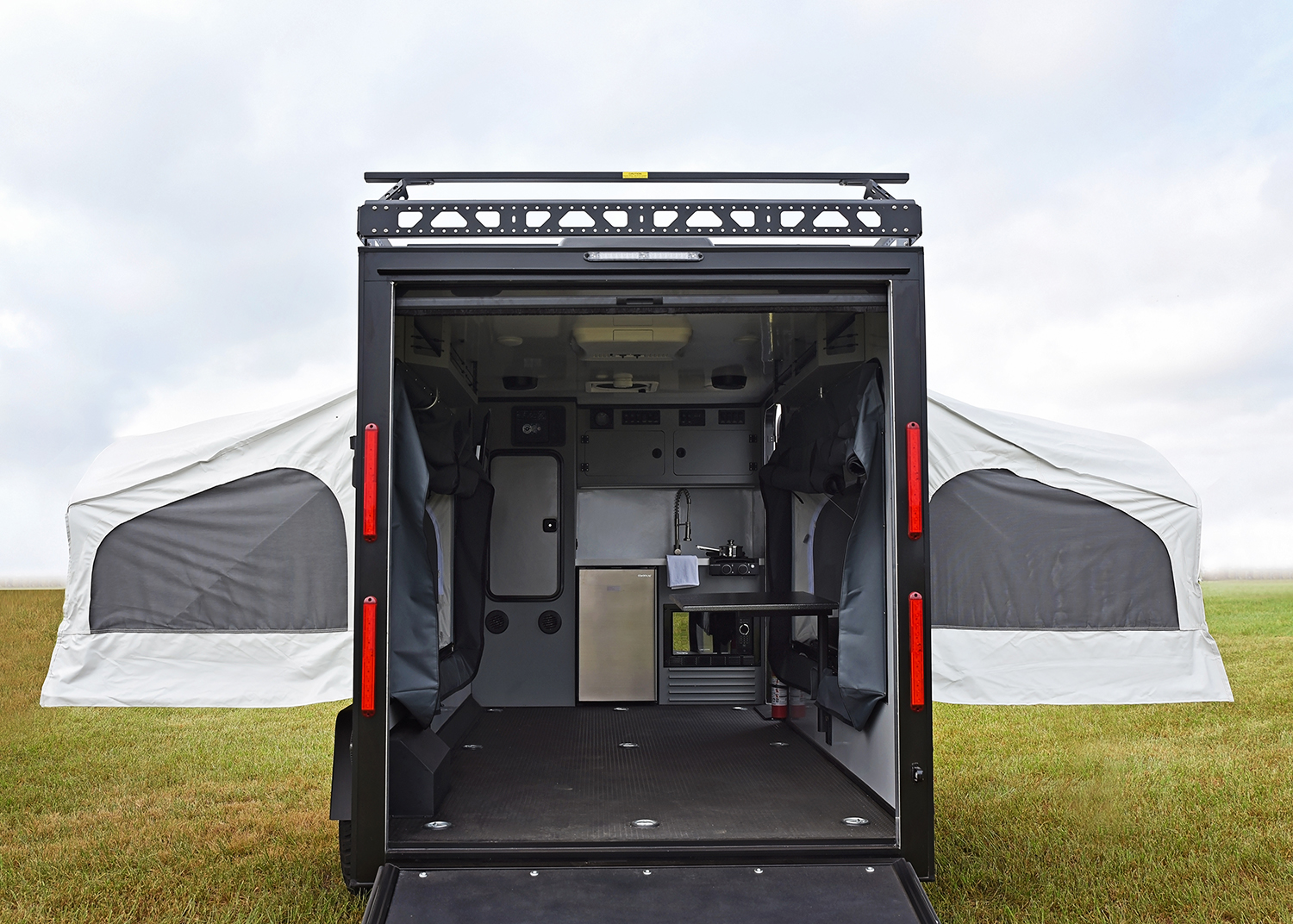

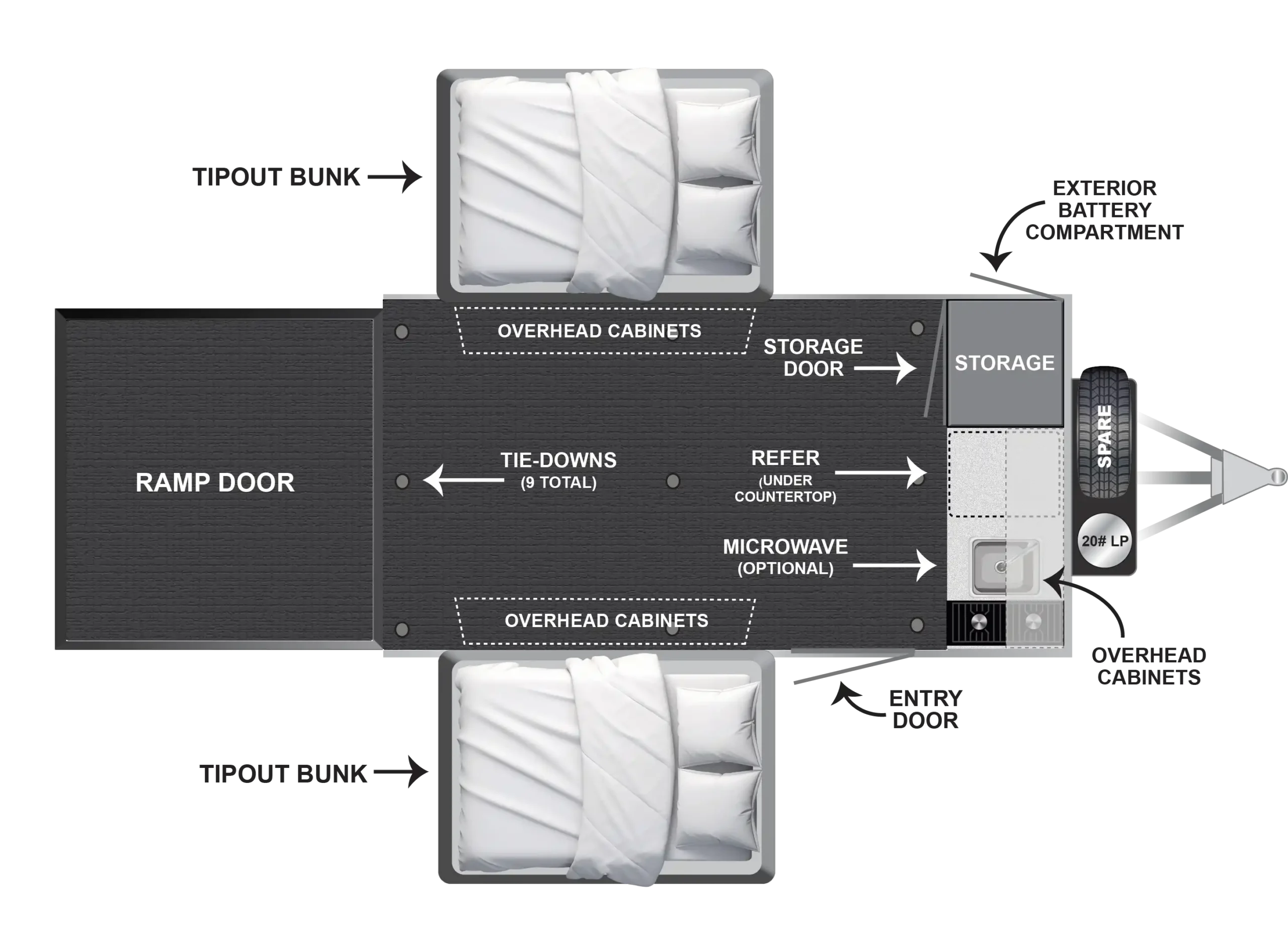

The RŎG 14TH is the perfect size toy hauler for transporting ATV’s, motorcycles, bicycles or just about any gear you’re taking on your next expedition. If your looking to get off-grid and away from it all, you’re going to discover the 14TH is the perfect Adventure Trailer and can be made with 1 or 2 tip-outs providing plenty of space for lounging and sleeping!

[ ADVENTURE SERIES ]

[ SURVIVAL SERIES ]

Crafted For Excellence

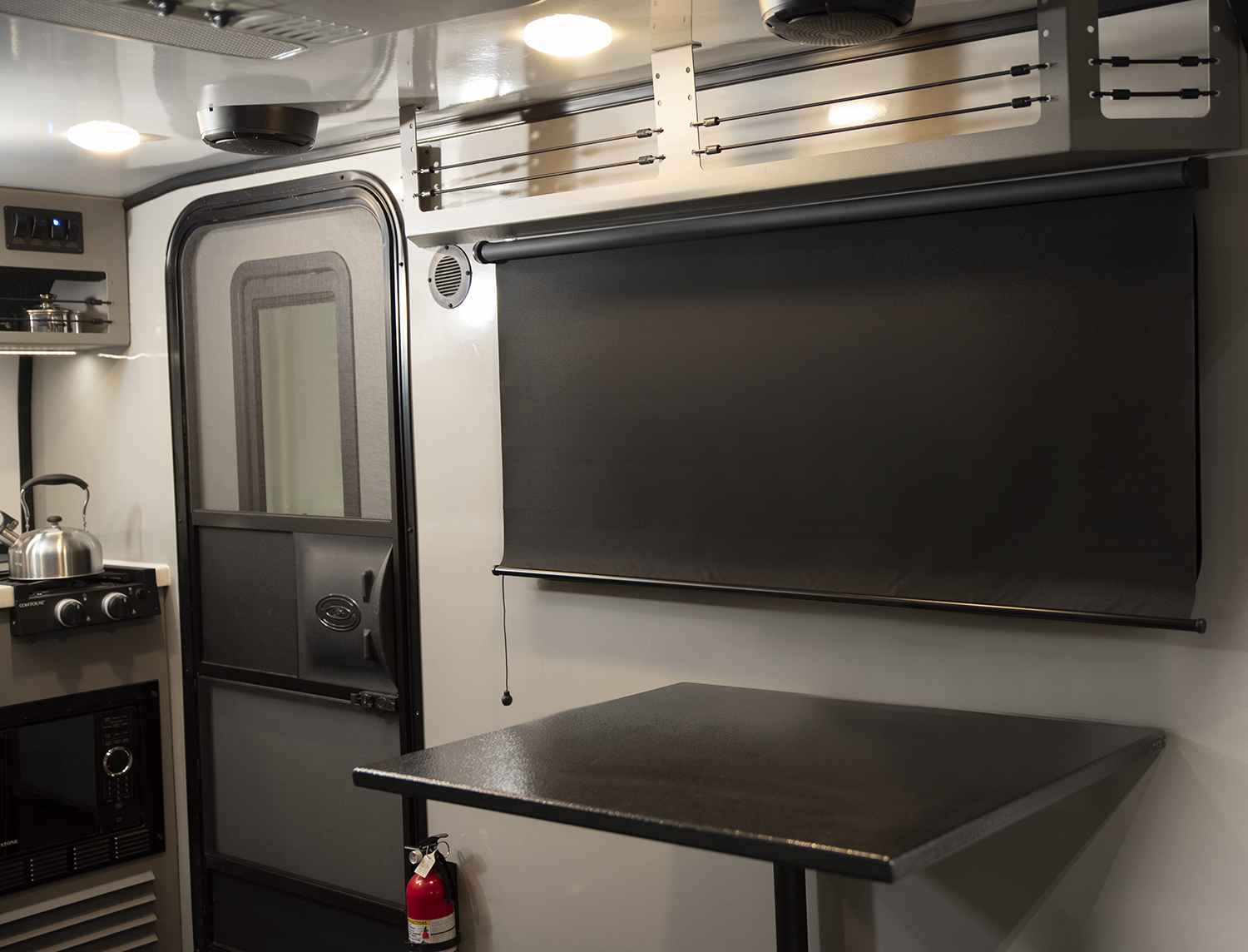

The 14TH is built to last, utilizing superior-quality materials throughout. It features 1 or 2 tip-outs, an abundance of space, and a fully functional kitchen for all your cooking needs. In addition, the 14TH is equipped with the option to add an 8′ Thule 12V Power awning, enhancing your experience at the campsite once you’ve reached your destination.

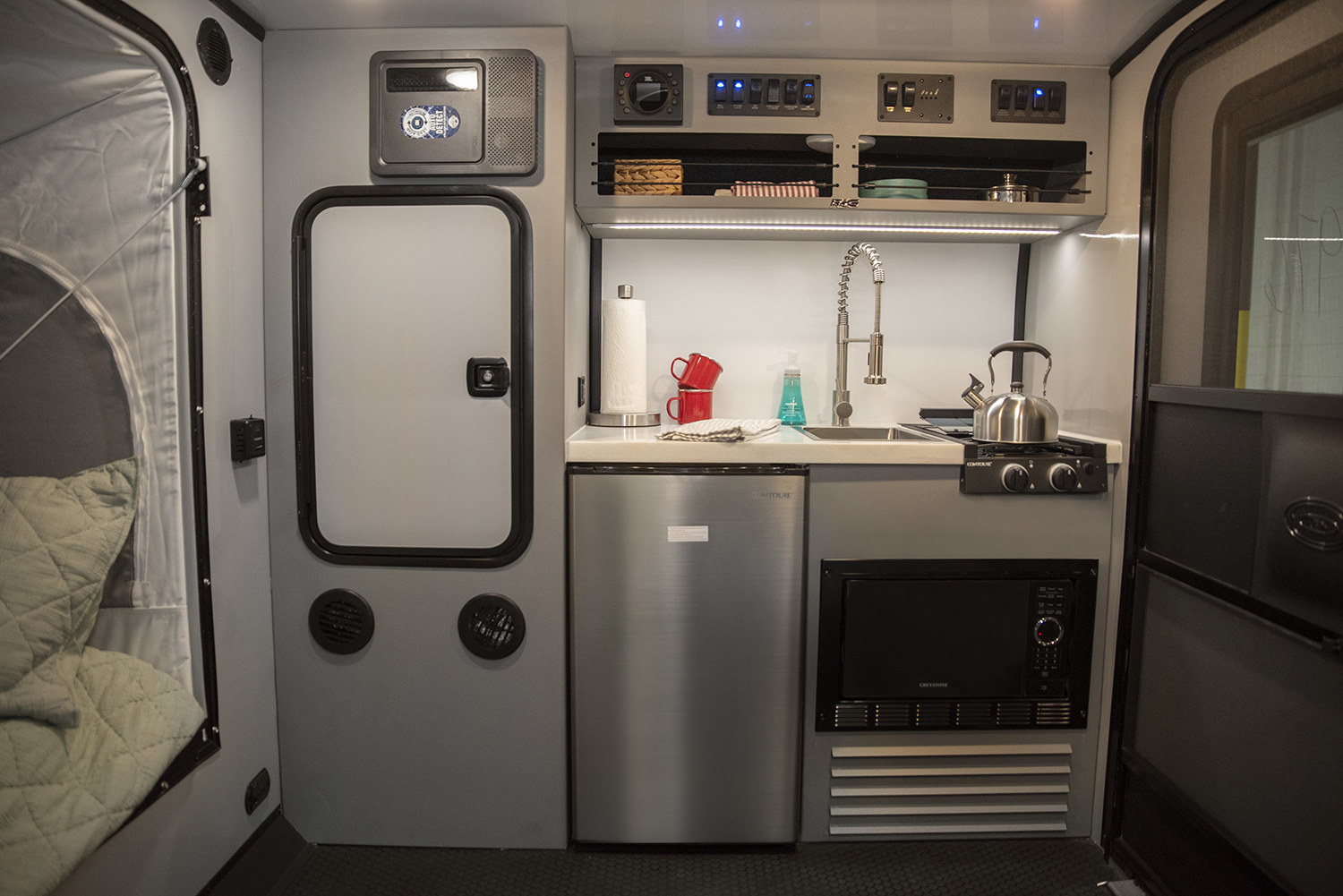

Front Wall- Refrigerator/Freezer, Microwave (optional)

Solid Surface Countertops / 2-Burner Stove / Stainless Steel Sink & Faucet / 2-Burner Stove w/Iron Grates

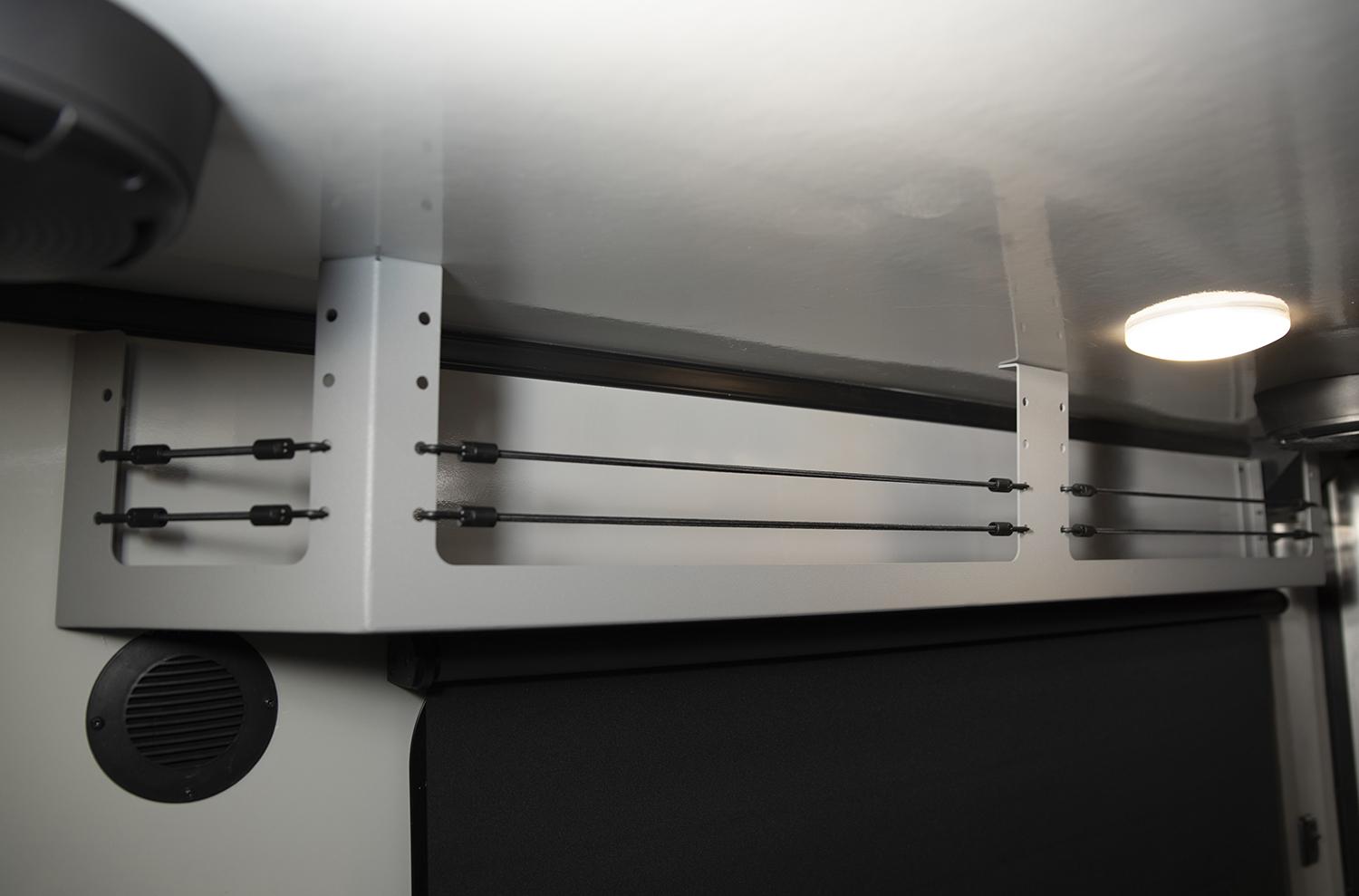

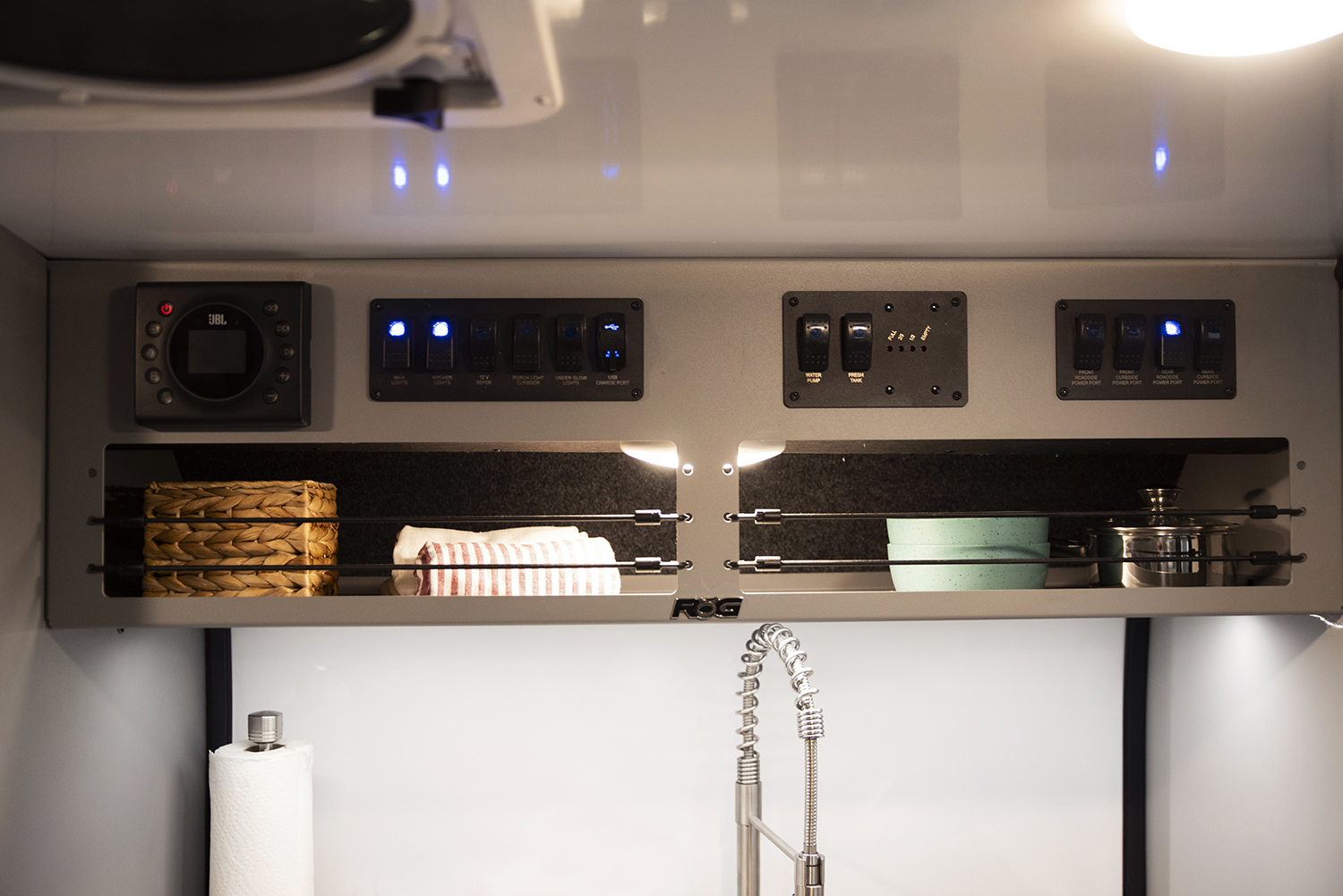

All-Aluminum Overhead Cabinets / 12V Rocker Switches

Optional 32" LED 12V TV w/Locking Swivel Mount

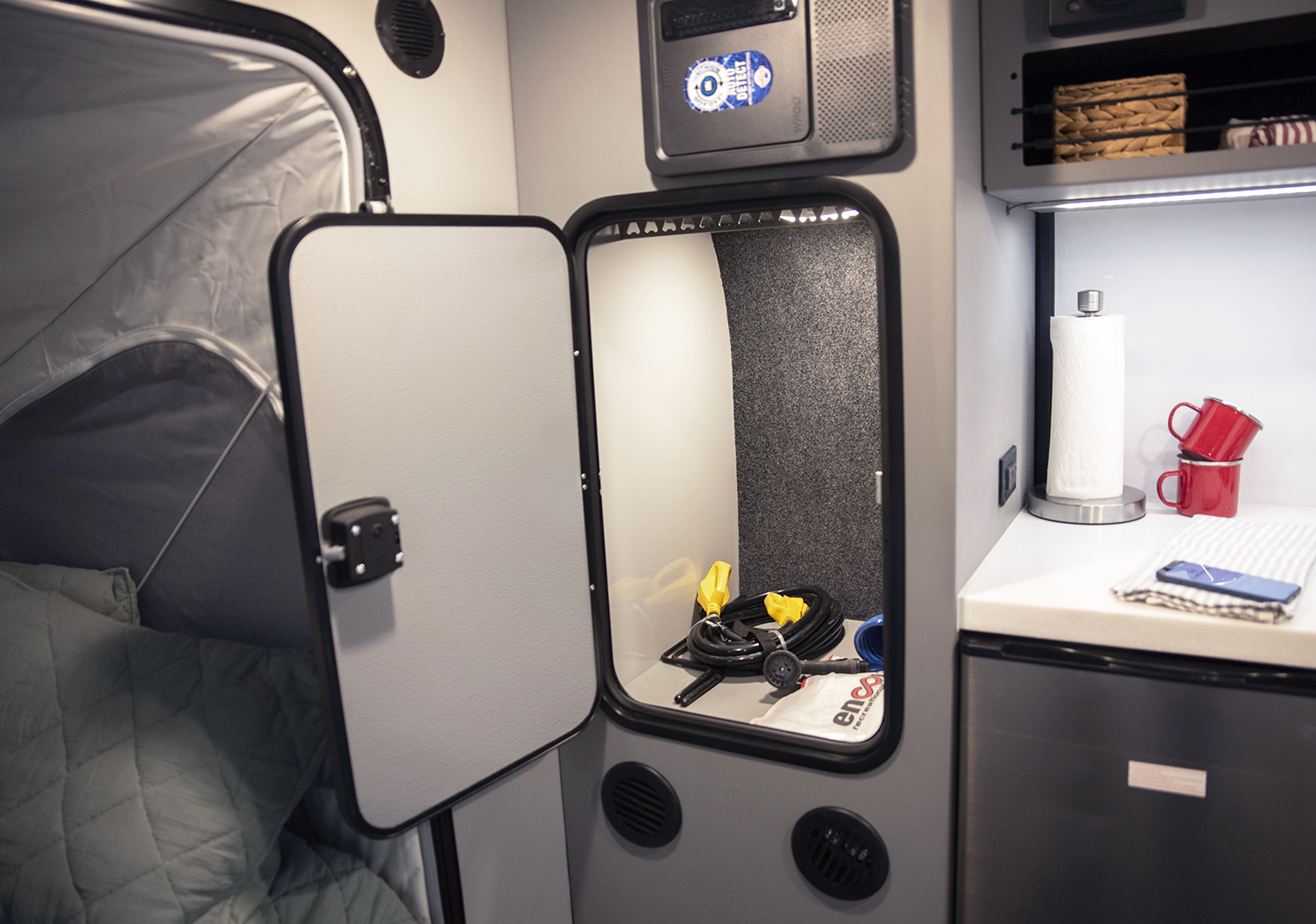

Aluminum Cover for Water Pump and Water Lines

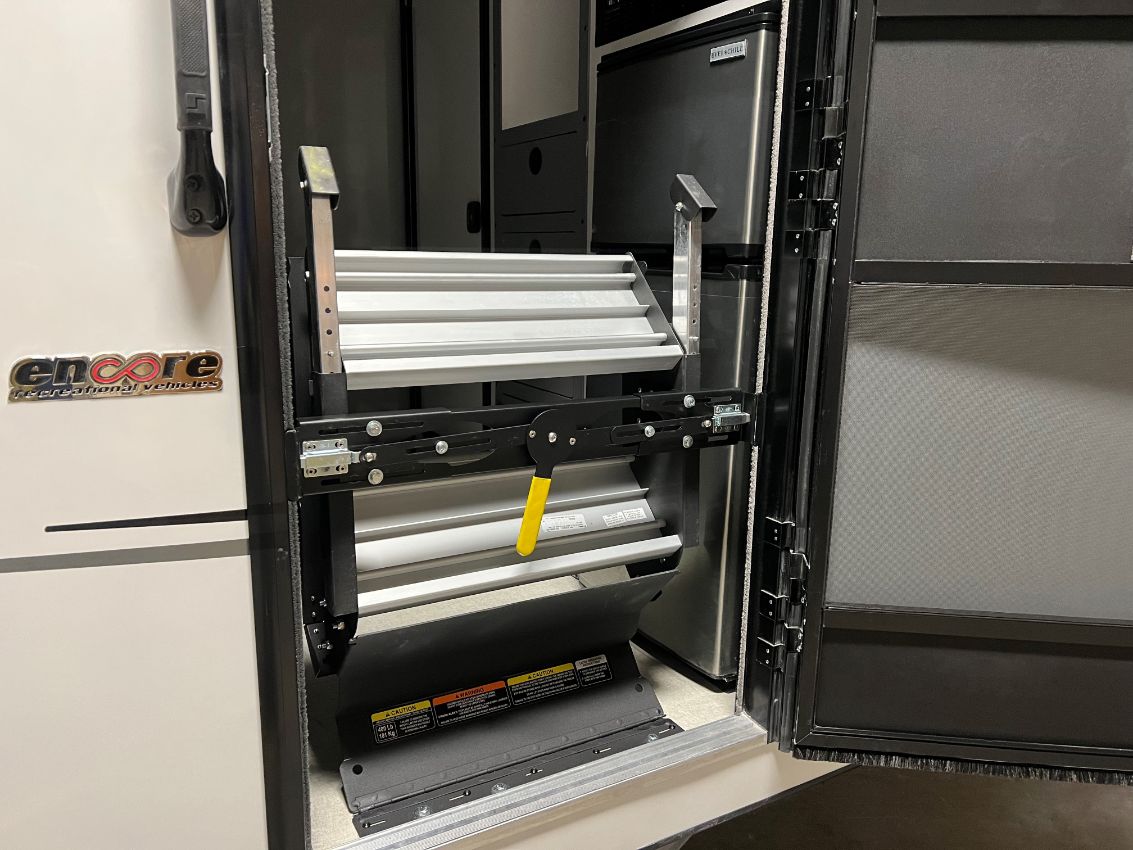

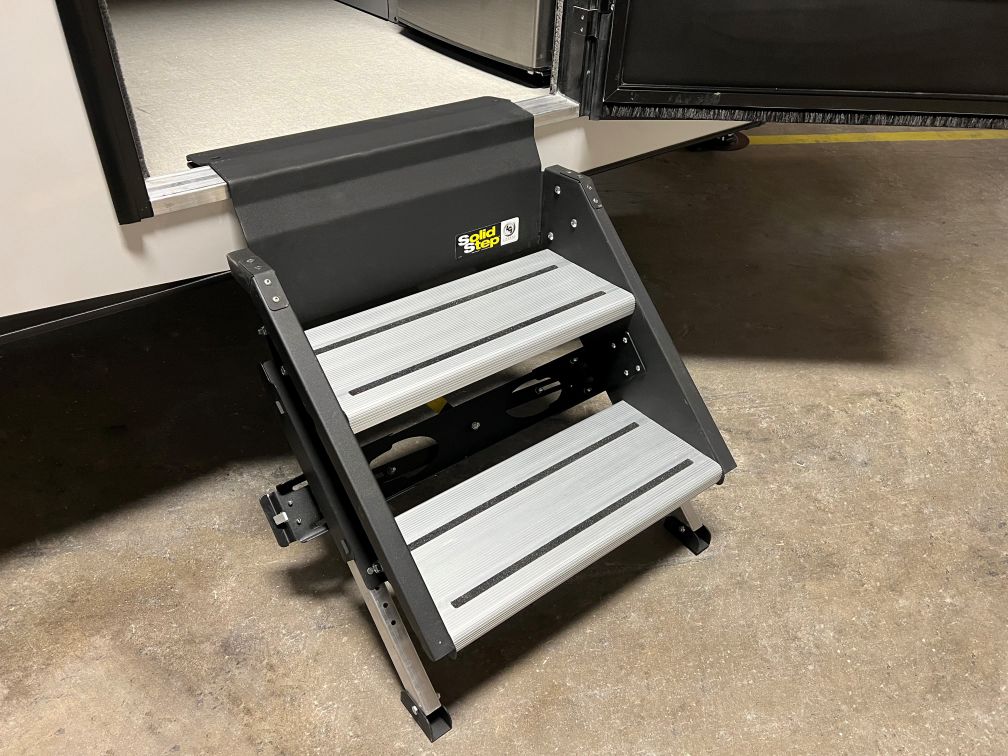

Solid Step - Shown in Stored Position - Quick Access

Maximize Your Off-Grid Adventure

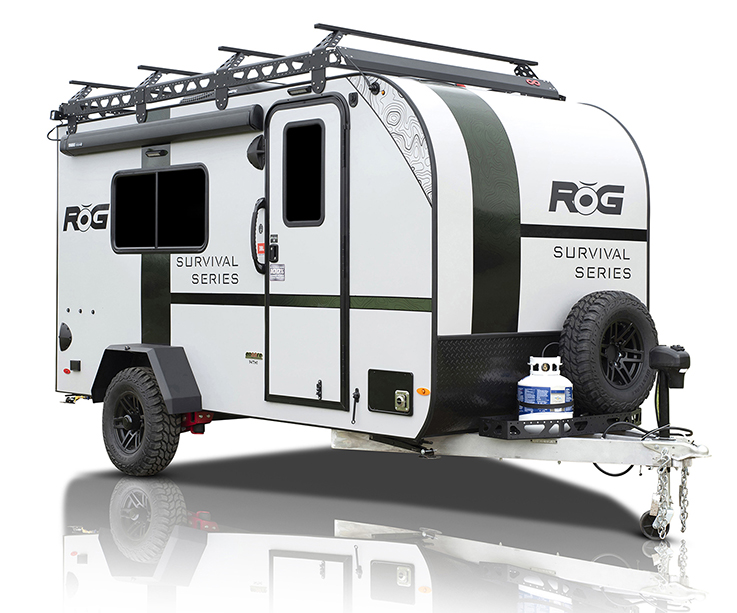

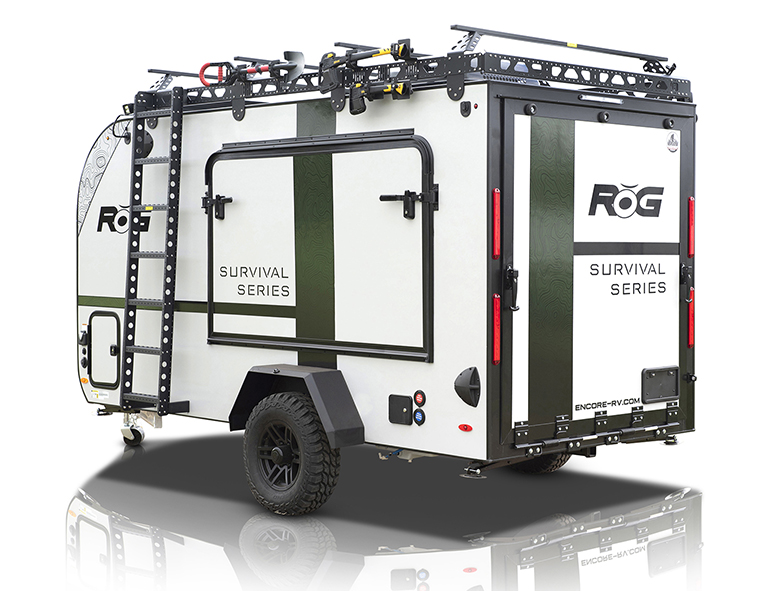

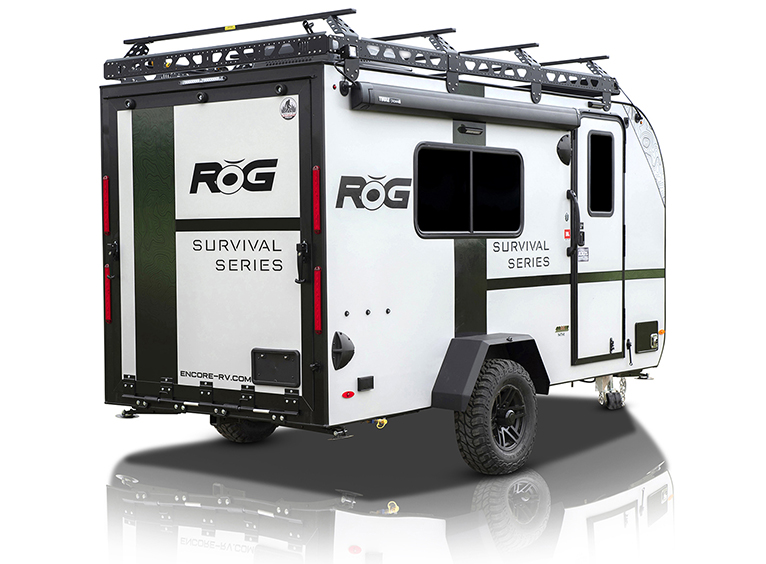

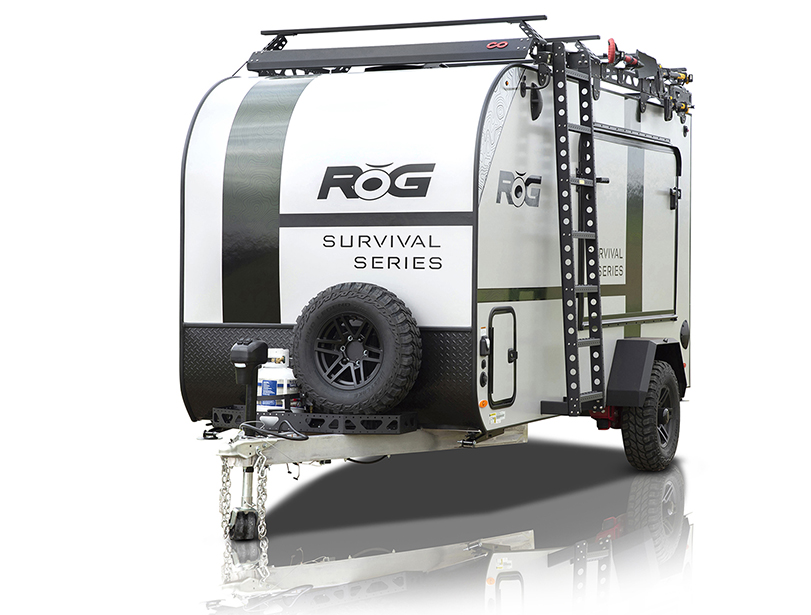

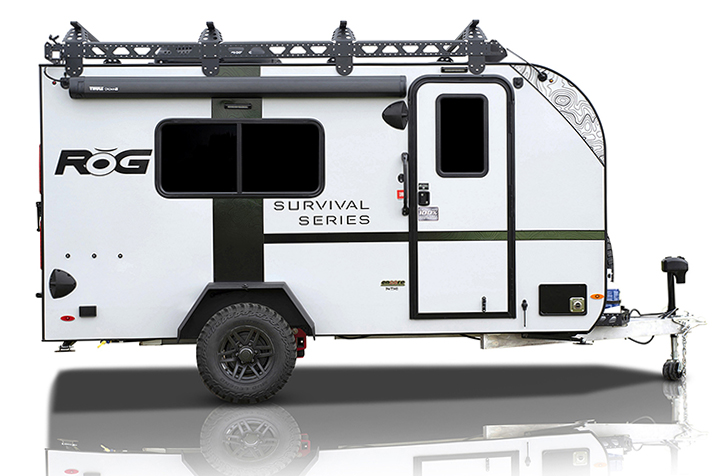

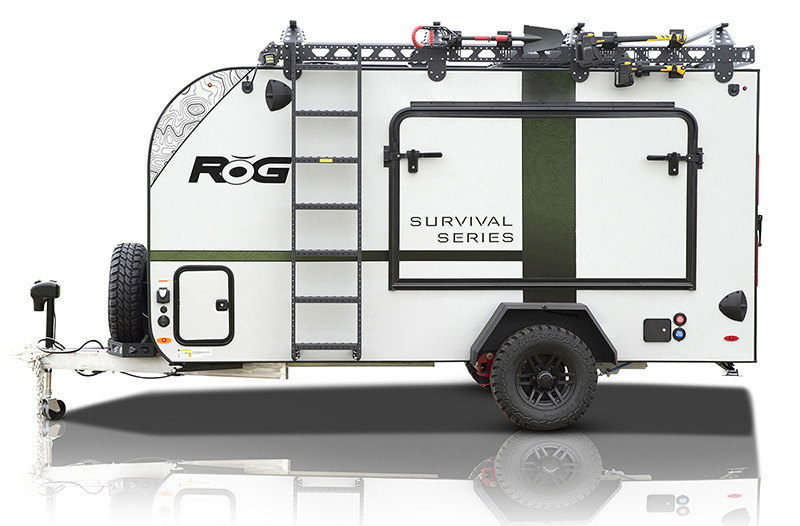

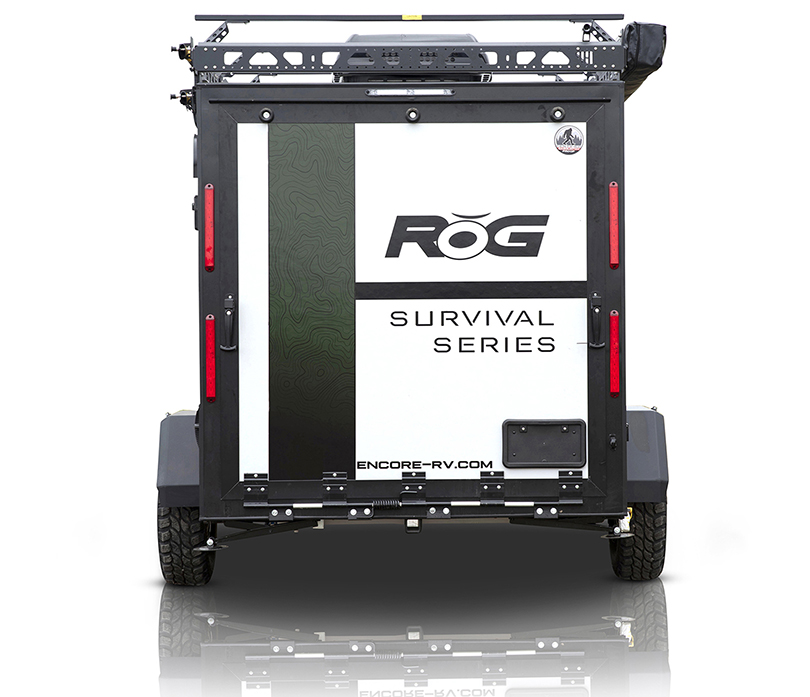

The 14TH1 Survival Series shares the core functionalities of the Adventure Series while incorporating numerous extra heavy-duty features, elevating your adventure experience to the next level!

FEATURES

These features are included on the Adventure Series and Survival Series models.

Off-Road/Off-Grid Package (Mandatory):
• ST235/75R15 Off-Road Tires

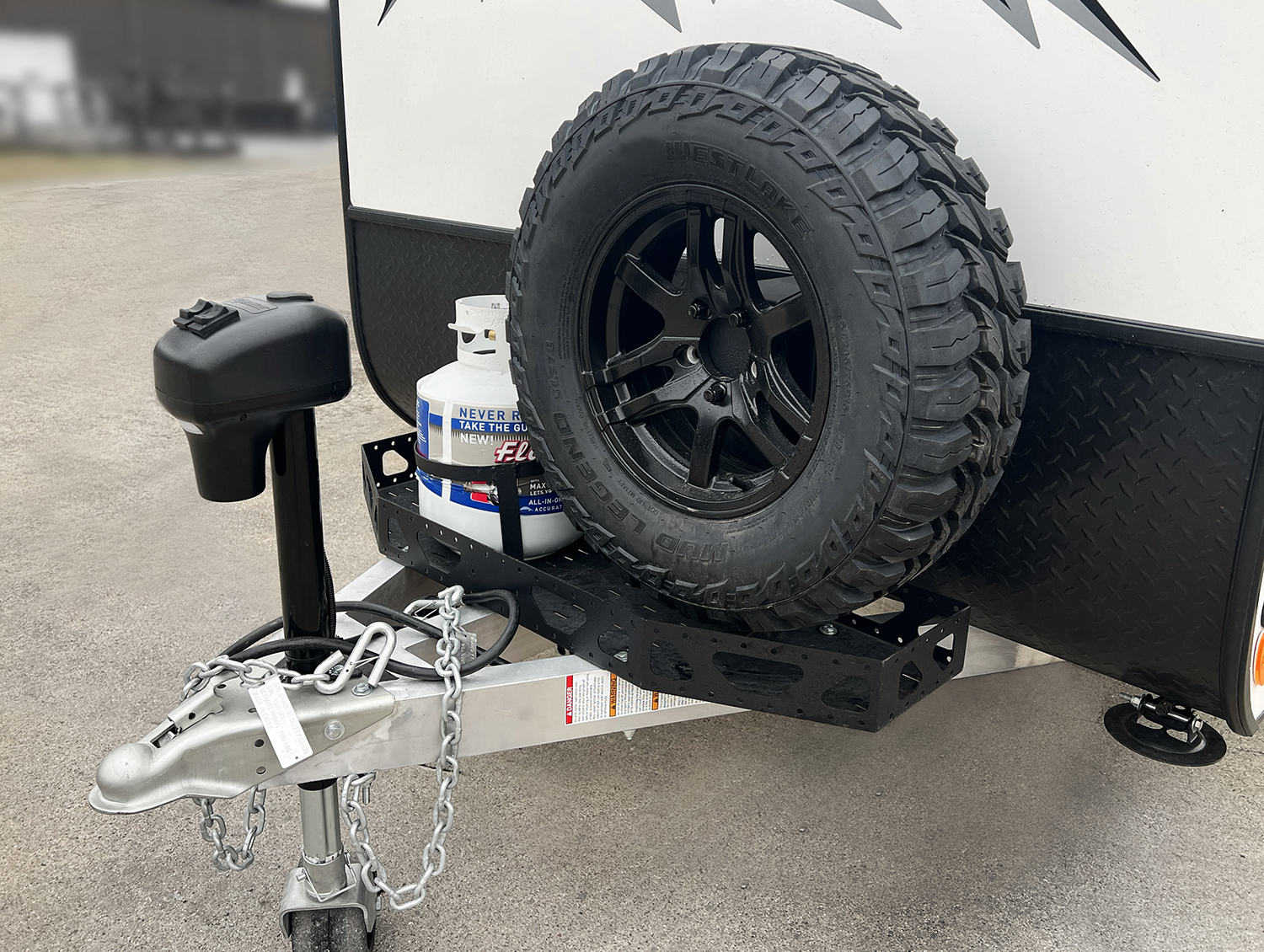

• Full Size Spare Tire w/Aluminum Wheel
• Solar Prep
• (4) Exterior SAE Power Ports
• High Gloss Fiberglass Exterior Walls & Roof
• Blackout Exterior Trim
• Vapor Bond Insulation
• On-Demand Water System – 26 Gallons
• 12V Water Pump & Exterior Shower
All-Aluminum Chassis
All-Aluminum Tube Construction
Breakaway Battery Kit
7-Way Trailer Plug
4,000# Torsion Axle
Electric Brake Axles
2-5/6″ Hitch
Safety Chains

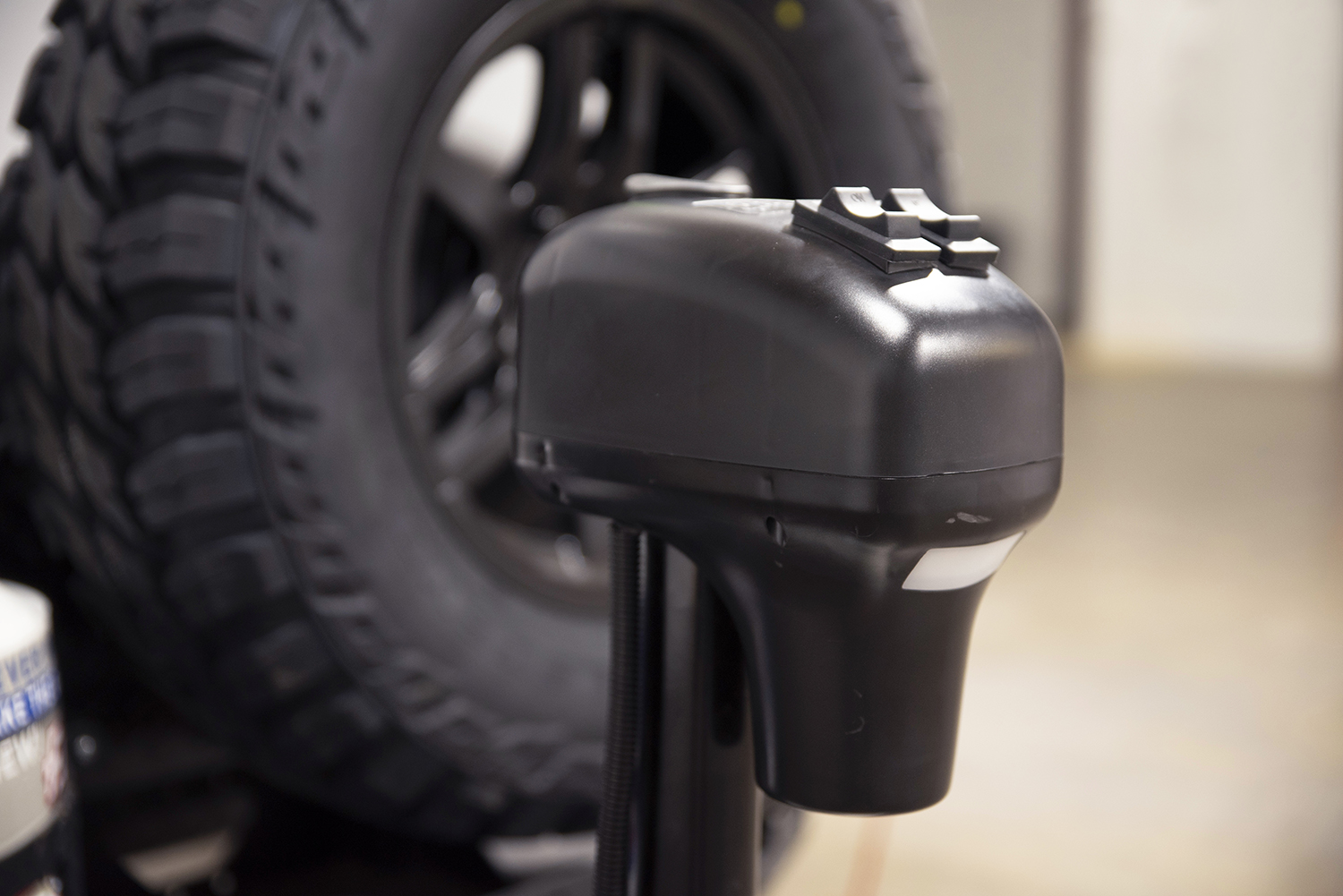

Electric Tongue Jack
Aluminum Wheels
30-Amp Detachable Shore Cord
2-Burner LP Stove w/Cast Iron Grates/Glass Top
Stainless Steel Sink w/Faucet
12V 3.3 Cubic Foot Refrigerator/Freezer
12V Power Roof Vent
40 Amp Converter w/Battery Charger
AM/FM Bluetooth Stereo (4 Spkrs)

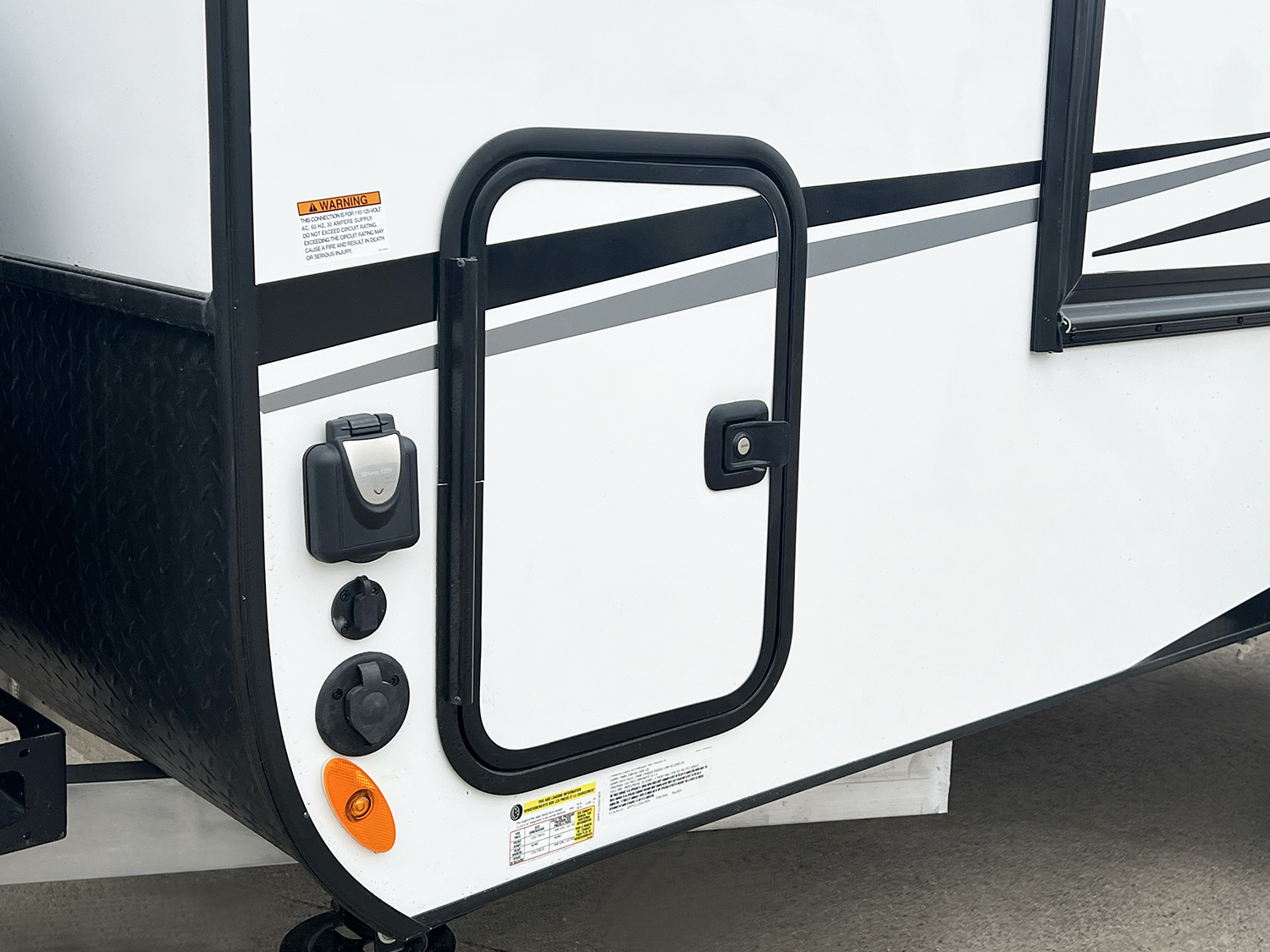

Exterior 12V SAE Power Port System
Under Frame Amber Accent Lights
USB Charge Port
Aluminum Cabinetry
Solid Surface Kitchen Counters
Closet/Storage
Grey Fiberglass Int. Walls
12V LED Lighting
TV/Satellite/Cable/HDMI Prep
Rocker-Style 12V Switches
(1) C/S Window w/Shade
Black Coin Flooring
One-Piece Fiberglass Ceiling

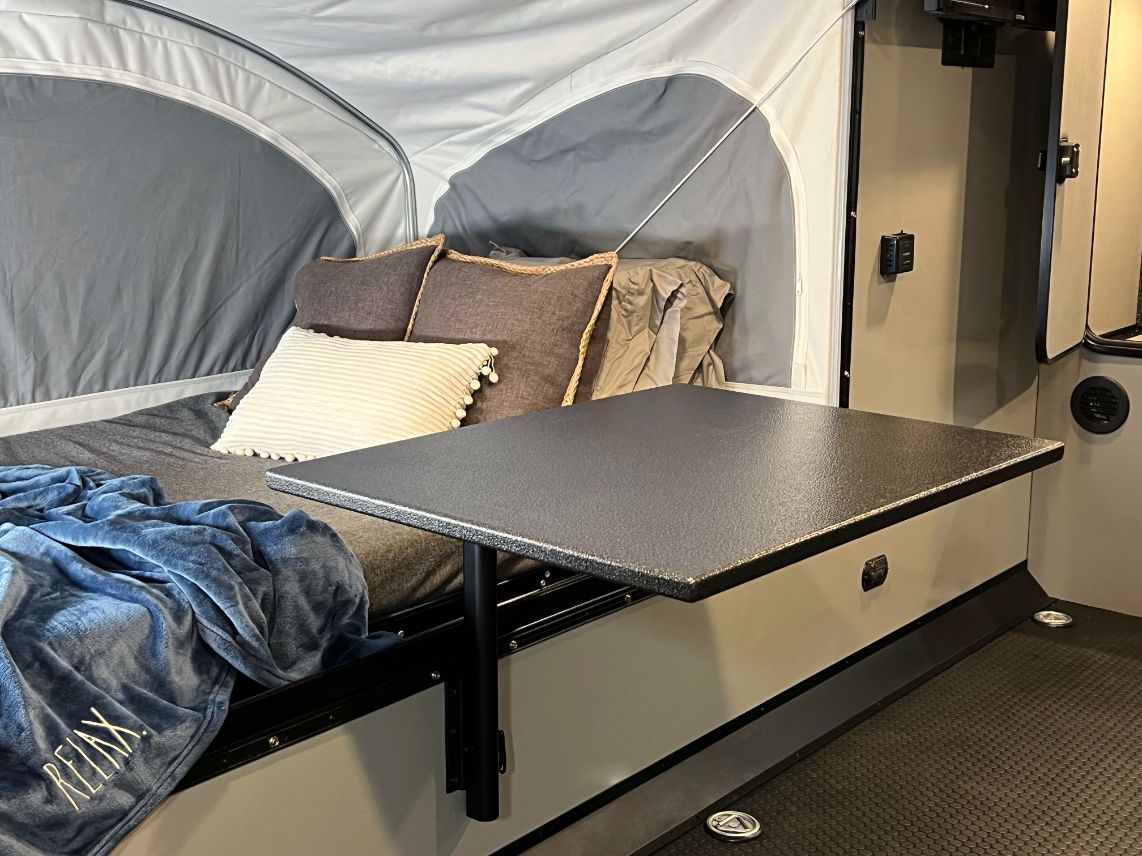

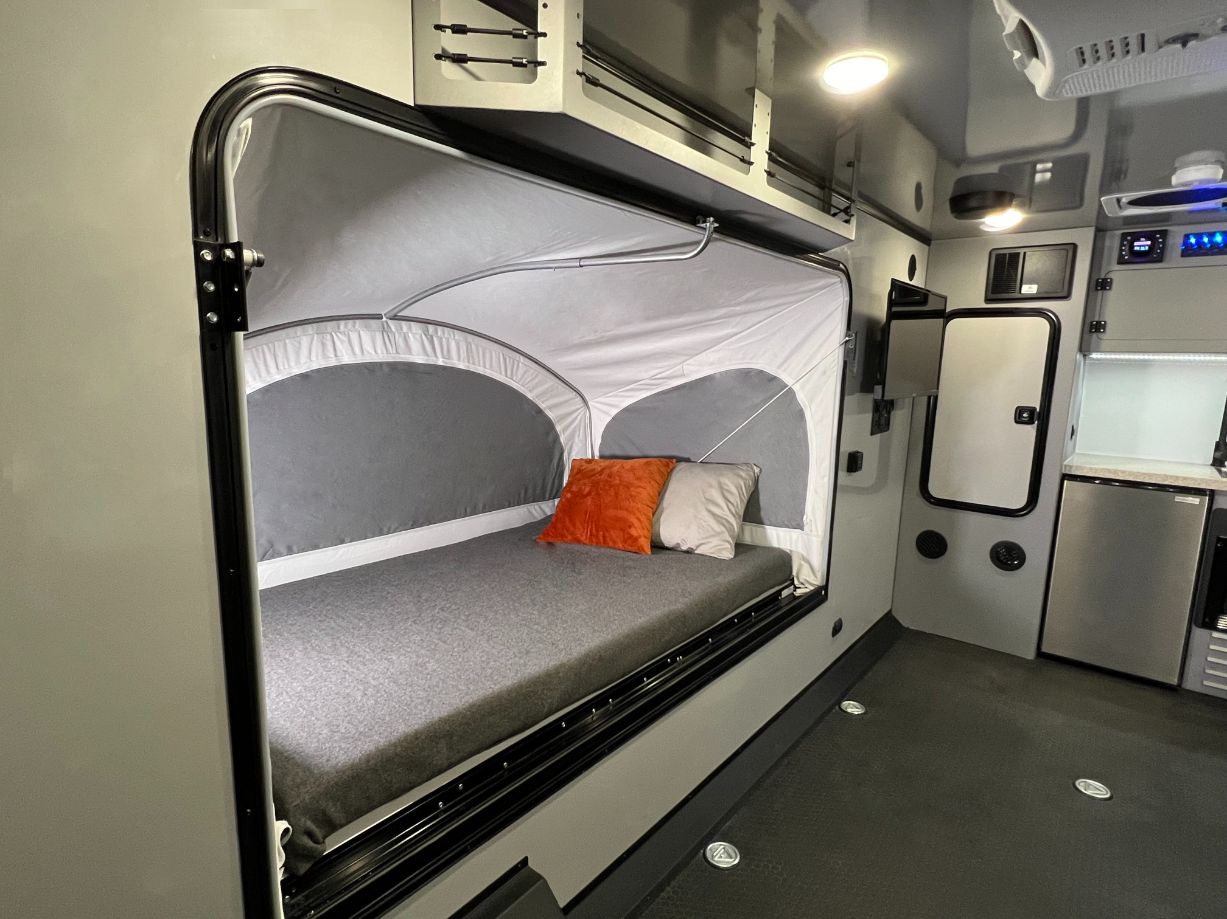

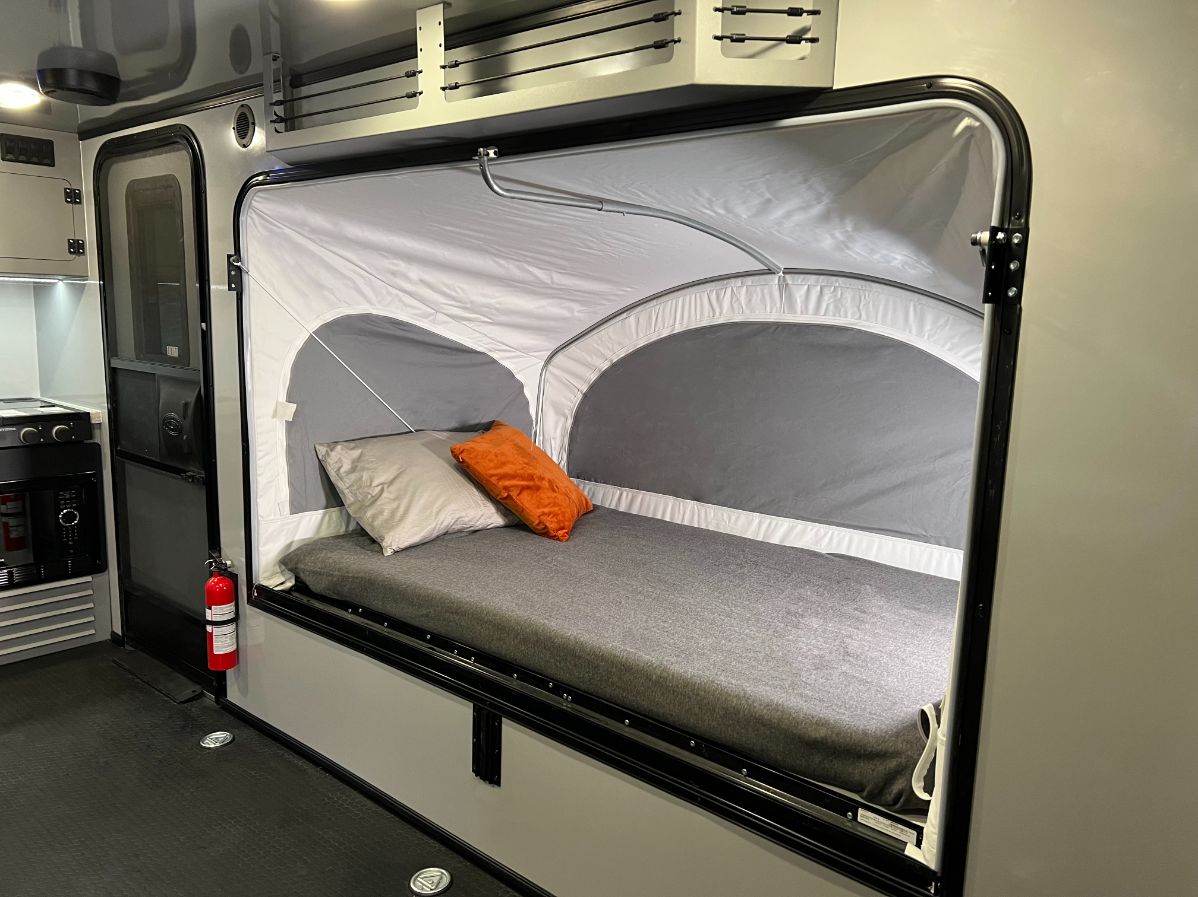

(1) R/S Tipout Bunk
100% Wood-Free Construction
Hi-Gloss Fiberglass Walls
Hi-Gloss Fiberglass One-Piece Roof
Tri-Bond Construction
Fully Welded Aluminum Frame
Composite Flooring & Interior Walls
(4) Stabilizer Jacks
Powdercoated Exterior Trim
LED DOT Running Lights

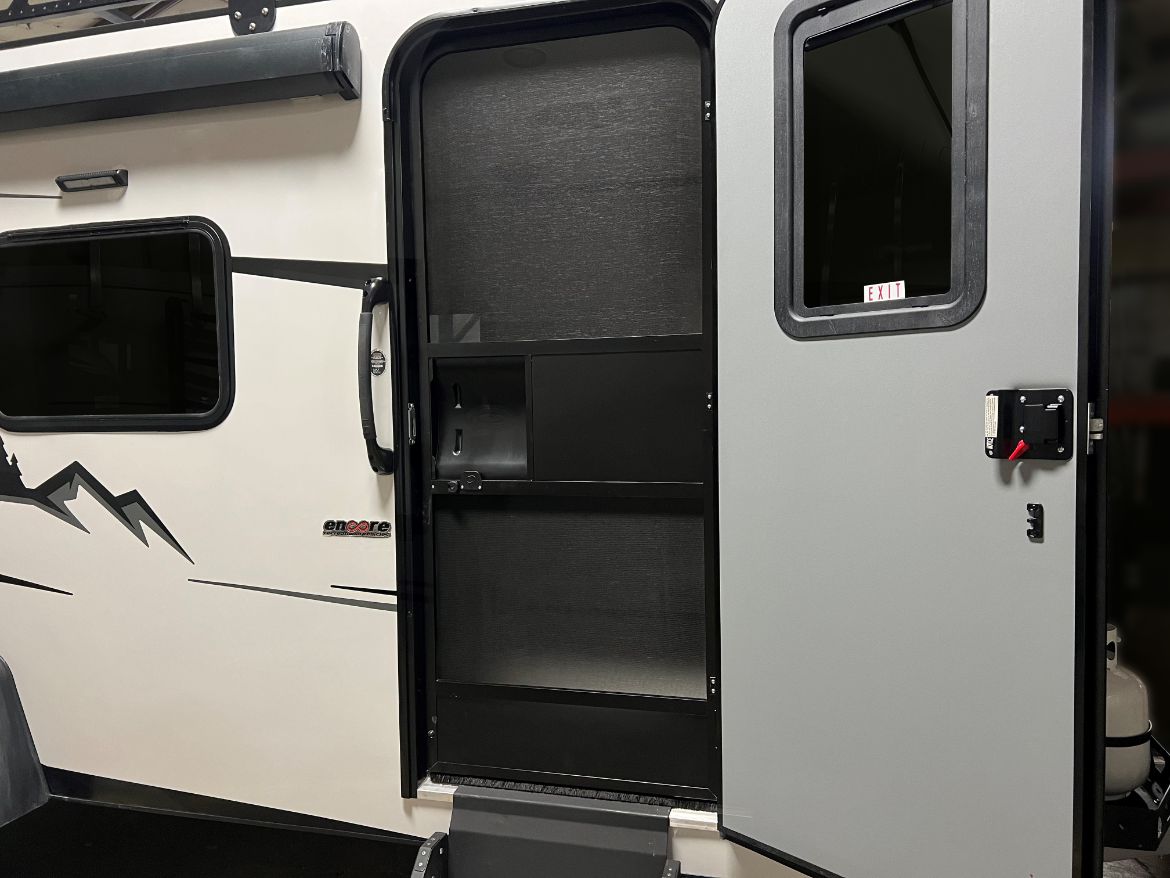

(1) Entry Door w/Window & Shade
Flip-Out Side Entry Steps

SS FEATURES

These features are included on the Survival Series models only.

26″ LP Griddle
Ext. Removable Griddle Table
LP Quick Connect Hose
18″ Splittling Axe
28″ Chopping Axe
Overland Shovel
Quick Fist Grips for Axes & Shovel
Locks for Axes & Shovel
Custom Roof Rack Brackets for Axes & Shovel
(2) LED Flood Lights – Roof Rack Mounted
Flag Pole – Roof Rack Mounted
Flag (American or Canadian)
Survival Hacks Book
First Aid Kit – Interior Mount
Personal Water Filtration Device
Survial Series Graphics Package

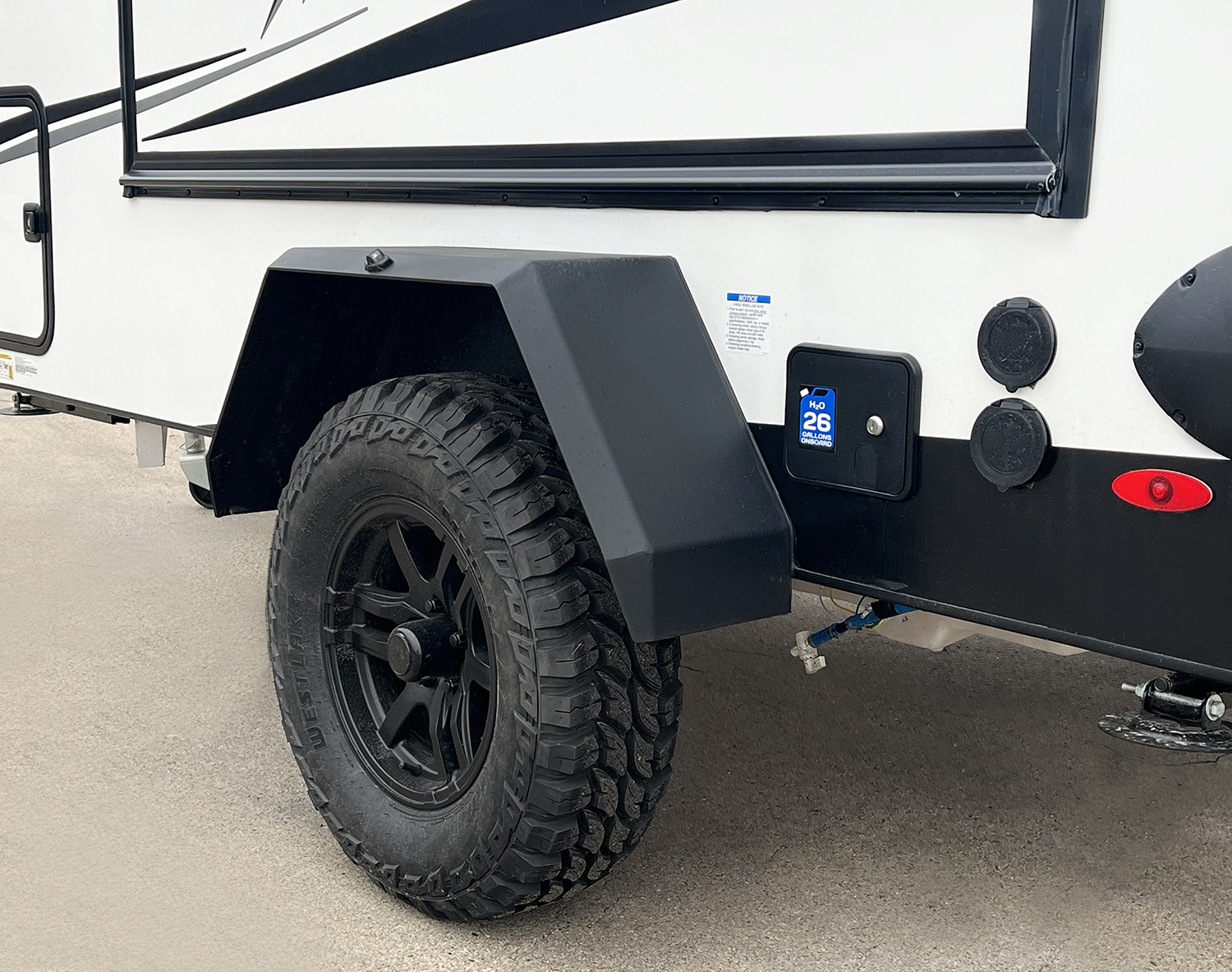

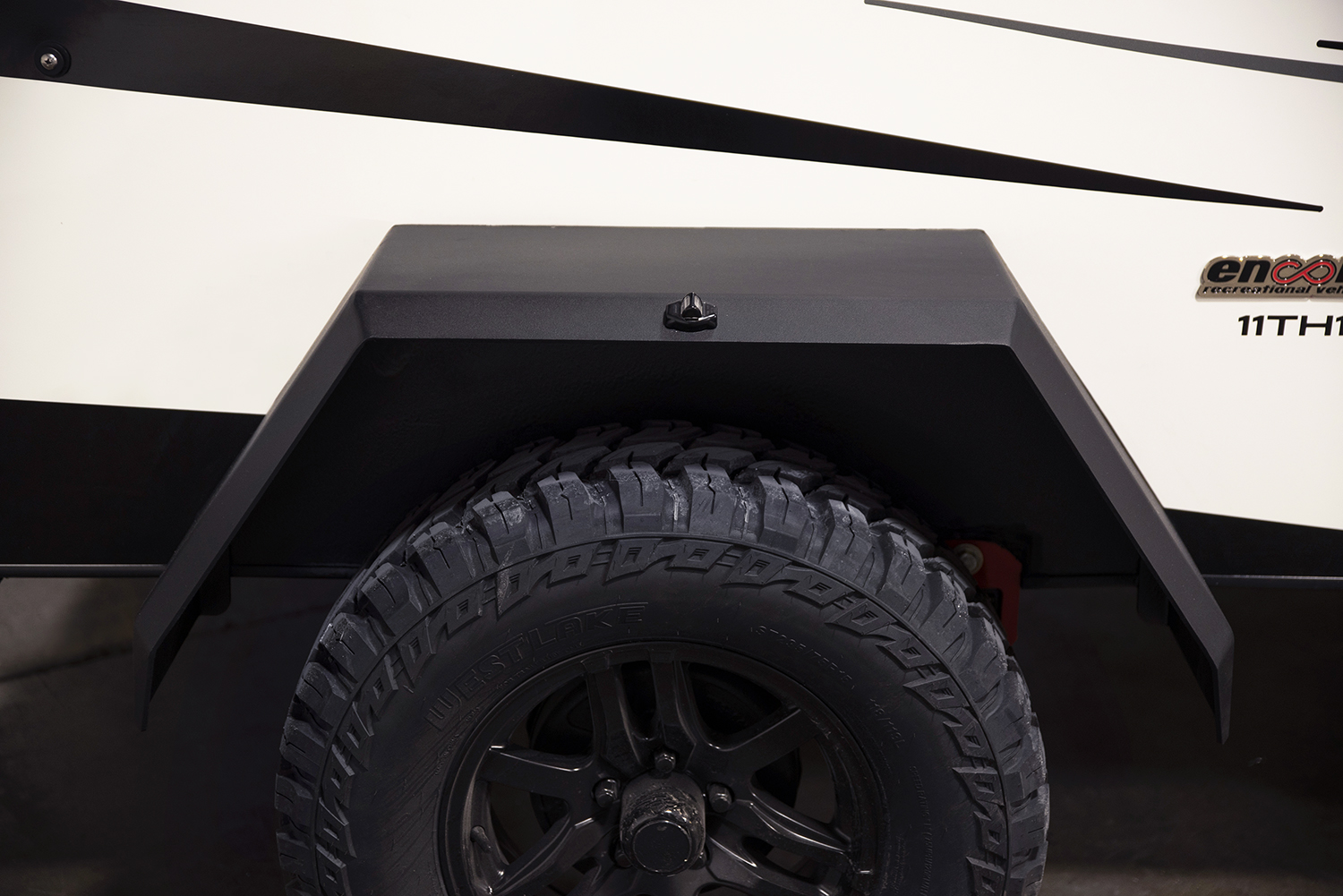

Heavy-Duty/Stand-On Fenders
Heavy-Duty Off-Grid Ladder

OPTIONS

11,000 BTU Roof Mount A/C

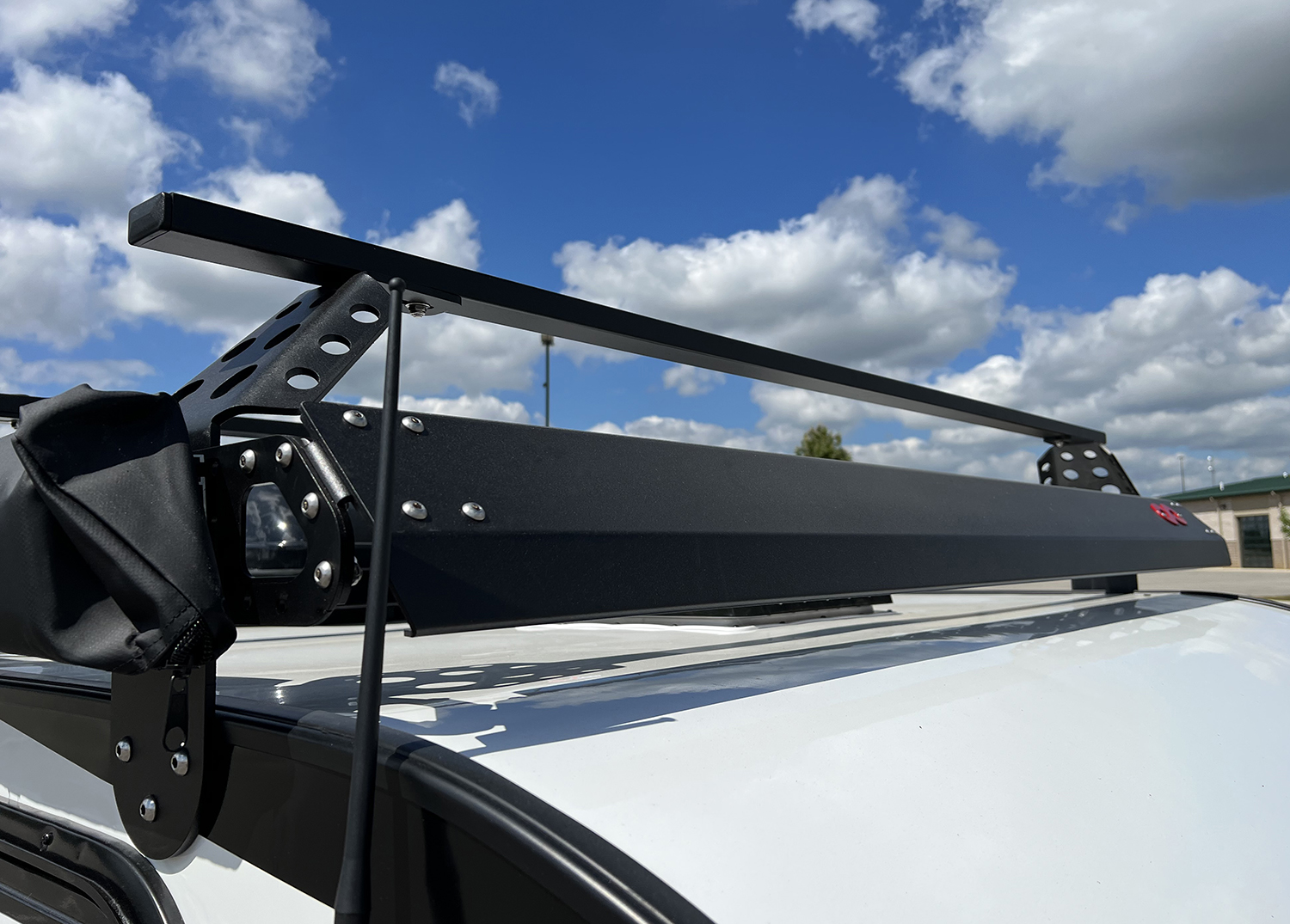

Roof Rack System (Mandatory w/Survival Series)
Off-Grid Side Mount Ladder – R/S – Requires Roof Rack
8′ Thule 12V Power Awning

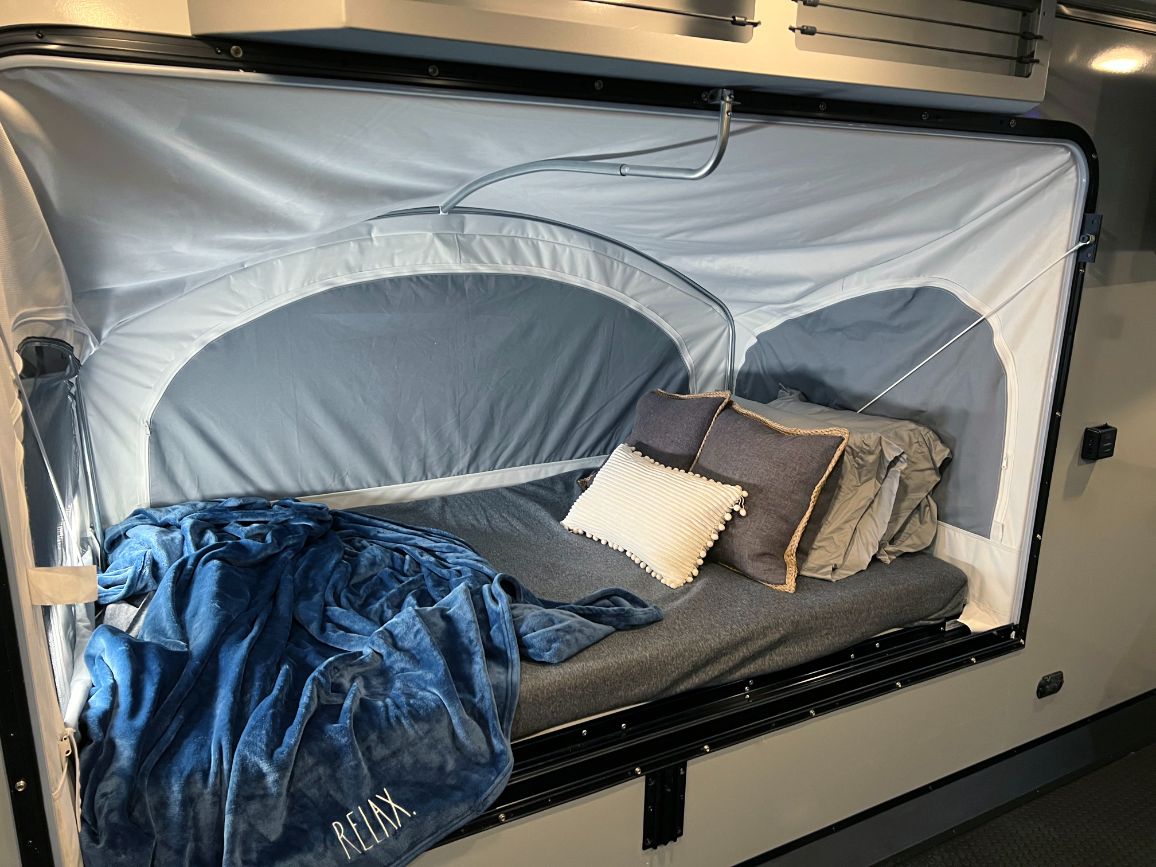

Upgrade to Insulated All-Season Tip-Out Tent
Pull Down Garage Door Screen
Flat Grey Exterior Fiberglass
32″ 12V TV w/Locking Swivel Mount & Removable HD Antenna
Microwave Oven
12V Lithium Battery 100aH (Maximum 3 Batteries)
Overland Package+: Timbren Axleless Suspension w/4″ Lift, Max Coupler 360 degree Articulating Hitch and HD Fenders.
Power-Up Package: 100aH Lithium Battery, 200-Watt Solar Panel, Battery Monitor w/Custom Bezel, (2) Extra Battery Trays.

SPECIFICATIONS

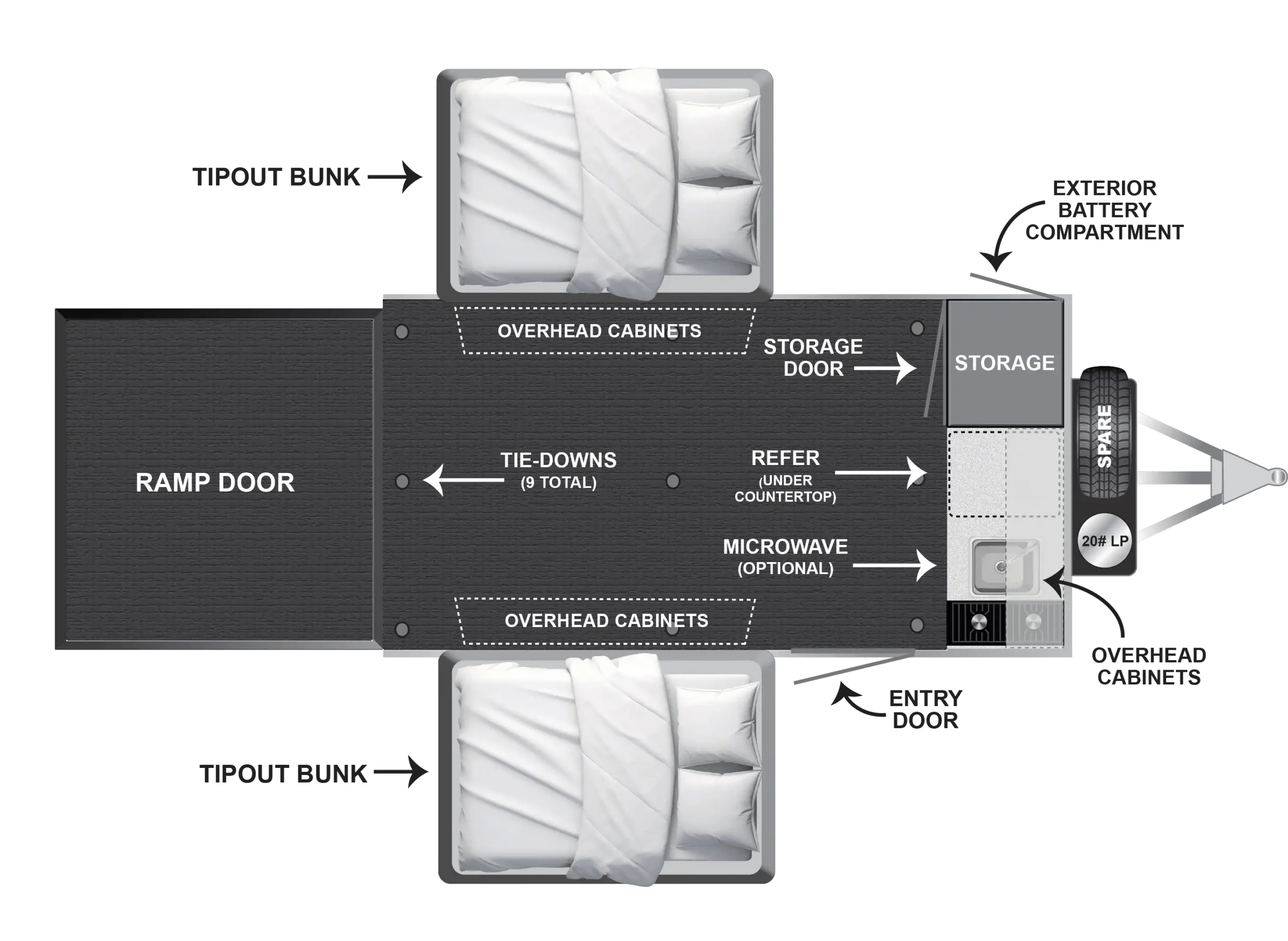

ADVENTURE SERIES	RŎG 14TH1	RŎG 14TH2
Dry Weight (No Options)	2,368 lbs	2,437 lbs
Dry Weight - Equipped*	2,634 lbs	2,703 lbs
Tongue Weight (no/water)**	567 lbs	567 lbs
Tongue Weight (w/water)**	536 lbs	536 lbs
GVWR	4,400 lbs	4,400 lbs
Torsion Axle Rating	4,000 lbs	4,000 lbs
Overall Length	198-1/4" (16' 6-1/4")	198-1/4" (16' 6-1/4")
Overall Width	95" (7' 11")	95" (7' 11")
Box Length (Exterior)	165-1/2" (13' 9-1/2'")	165-1/2" (13' 9-1/2'")
Interior Floor Length	136" (11' 4")	136" (11' 4")
Interior LQ Width	69-1/2" (5' 9-1/2")	69-1/2" (5' 9-1/2")
Interior LQ Height	73" (6' 1")	73" (6' 1")
Interior LQ Height w/A/C	69-3/4"	69-3/4"
Ramp Door Opening	70-1/2" x 64"	70-1/2" x 64"
Ramp Door Opening w/Screen	68" x 64"	68" x 64"
Ramp Door Platform	70" x 63"	70" x 63"
Ramp Door Capacity***	2,500 lbs	2,500 lbs
Tip-Out Size	77" x 44" R/S	77" x 44" R/S
Tip-Out Capacity	1,100 lbs	1,100 lbs
Overall Height (w/Roof Rack)	109-3/4" (9' 1-3/4")	109-3/4" (9' 1-3/4")
Overall Height (w/A/C)	108-1/2" (9' 1/2")	108-1/2" (9' 1/2")
Overall Height (w/Roof Vent)	102-1/2" (8' 6-1/2")	102-1/2" (8' 6-1/2")
Ground Clearance	11-1/8"	11-1/8"
Roof Rack Capacity****	400 lbs	400 lbs
Rear Receiver Capacity	200 lbs	200 lbs
Coupler	2-5/16"	2-5/16"
Hitch Ball Height	17-1/2"	17-1/2"
Tires	ST235/75R15 LRC	ST235/75R15 LRC
Wheels	15" x 6"	15" x 6"
Spare Tire	Yes	Yes
Electric Brakes	Yes	Yes
7-Way Plug	Yes	Yes
Battery	Requires AGM or Lithium-	Non Vented Batt Compartment*****
Fresh Water Tank	26 Gallons	26 Gallons
Refer Size	3.3 Cubic Feet	3.3 Cubic Feet
Furnace Size (BTU's)	18,000 BTU	18,000 BTU
Roof Top A/C (Option)	11,000 BTU	11,000 BTU
SURVIVAL SERIES
Base Weight	2,549 lbs	2,618 lbs
Loaded Weight	2,787 lbs	2,856 lbs
OPTIONS
11,000 BTU Roof Mount A/C	102 lbs	102 lbs
Roof Rack	65 lbs	65 lbs
8' Thule	39 lbs	39 lbs
32" 12V TV w/Swivel Mount and Antenna	14 lbs	14 lbs
Pull Down Garage Door Screen	25 lbs	25 lbs
Microwave	30 lbs	30 lbs
Power Up Package	49 lbs	49 lbs
Overland Package+	125 lbs	125 lbs

*Dry Weight Equipped includes all available factory options.
**Tongue Weight includes the following options (Roof Rack, A/C, TV, & Off-Grid Ladder)
***Roof Rack rated at 100 lbs (45 kg) per crossbar – Dynamic Rating – Rolling Down Road
****You cannot use a standard wet cell deep cycle battery
*****Overland Package+ Includes Heavy-Duty Fenders
