Most RV electrical systems operate primarily on 12-volt DC power supplied by the battery bank. This power runs many of the trailer’s essential systems, including lighting, water pumps, fans, and electronics.
However, many common household appliances require 120-volt AC power, the same type of electricity used in homes. An inverter allows battery power to operate these appliances when shore power is not available, making it an important part of an off-grid RV electrical system.
Encore RV offers a 3000-watt inverter with a built-in transfer relay as part of the Power+Plus Package. In addition, all Encore trailers include Inverter Prep, allowing an inverter to be installed more easily at a later time.
What is an Inverter?
This allows the RV battery bank to power appliances and devices that normally require household electricity.
Examples of appliances that require 120-volt power include:
- Coffee makers
- Microwaves
- Air conditioners
- Laptop chargers
- Small kitchen appliances
- Certain power tools
Without an inverter, these appliances can only operate when the trailer is connected to shore power or a generator.

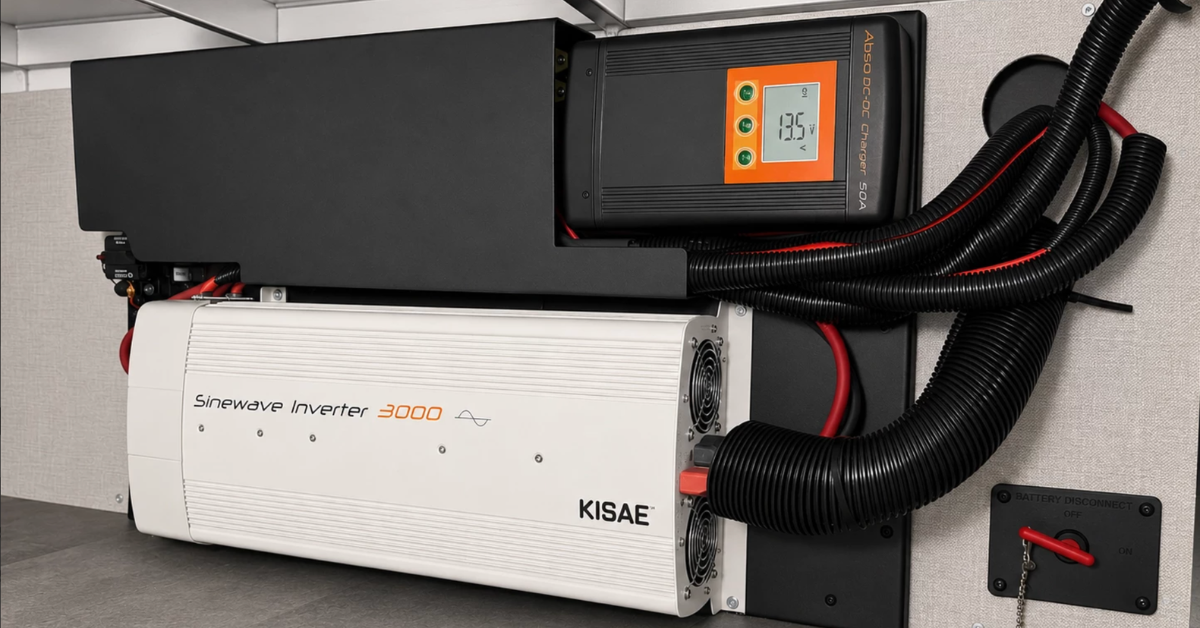

How Does an RV Inverter Work?
When the inverter is turned on, it draws 12V DC power from the RV battery bank and electronically converts it into 120V AC electricity.
This allows designated outlets inside the trailer to operate like standard household outlets, even when the RV is not plugged into shore power.
Because an inverter draws energy from the batteries, how long appliances can run depends on several factors:
- The size and capacity of the battery bank
- The current battery state of charge
- The power consumption of the appliances being used
Understanding a 3000-Watt RV Inverter
The inverter included in the Power+Plus Package also contains a built-in transfer relay.

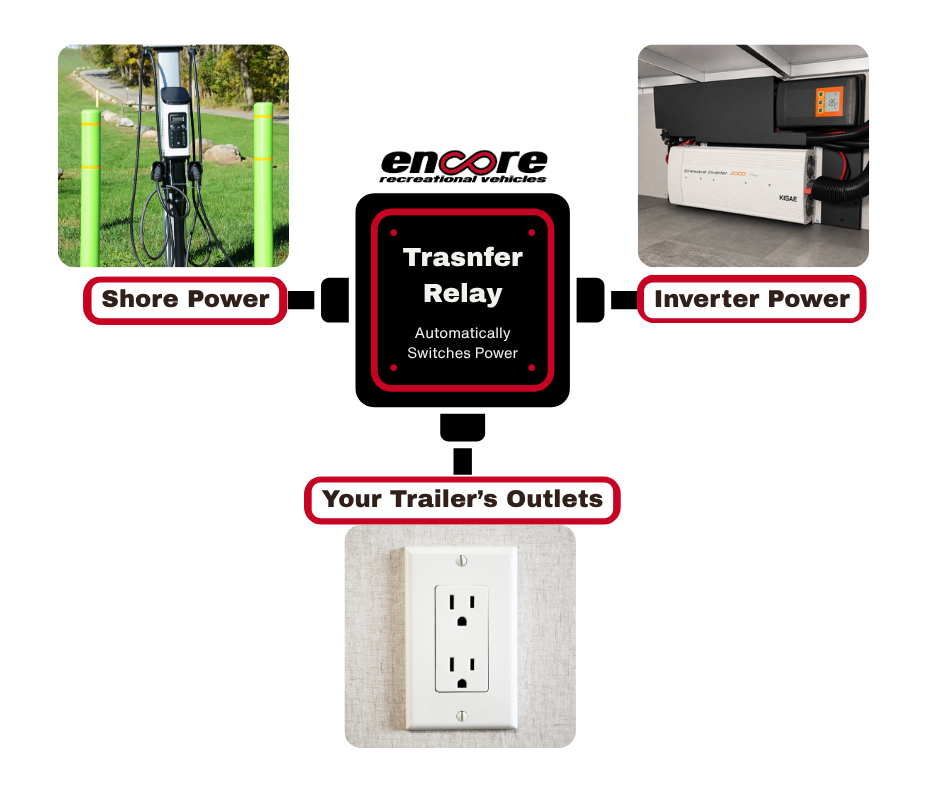

A transfer relay automatically switches the trailer’s outlets between two power sources:
- Shore power
- Inverter power
When the trailer is plugged into shore power, campground electricity supplies power to the outlets. When shore power is disconnected, the relay automatically switches the outlets to receive power from the inverter.
This process happens automatically, so the owner does not need to manually switch between shore power and inverter power.
Encore RV Inverter Prep
Even if an Encore trailer is not equipped with the inverter package, every Encore trailer includes Inverter Prep as standard equipment.
This means the RV electrical system has been designed so an inverter can be added more easily in the future. Wiring and layout considerations have already been planned to simplify installation if owners choose to upgrade their RV power system later.
Can an RV Air Conditioner Run on Battery Power?

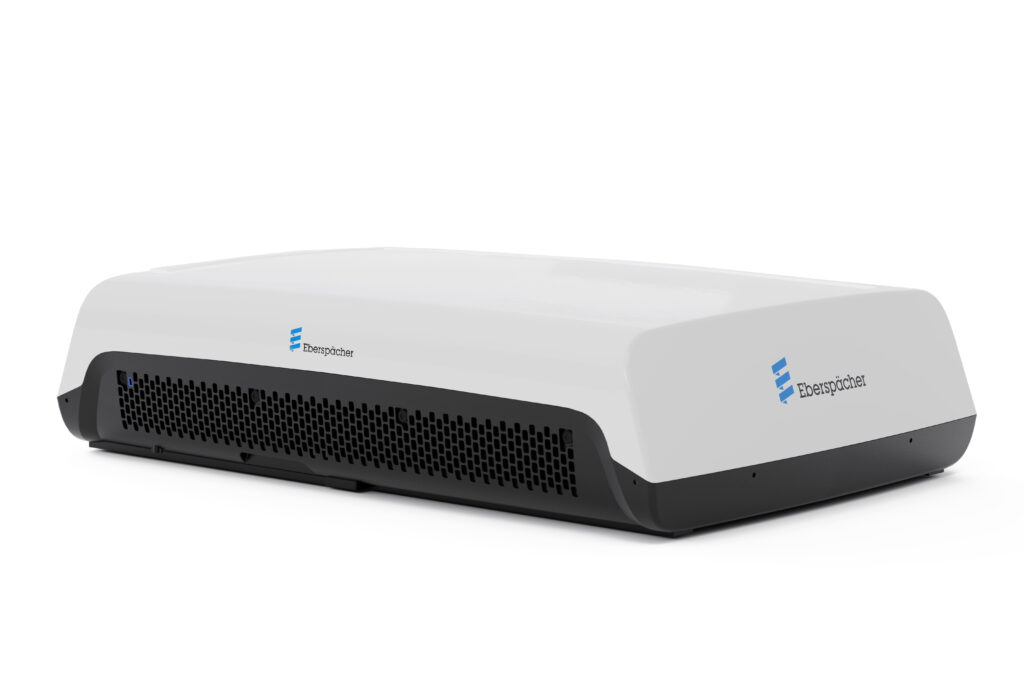

Encore trailers use a highly energy-efficient Eberspächer air conditioner with heat pump. Because of this efficiency, the 3000-watt inverter can power the RV air conditioner for limited periods of time, even when the trailer is not connected to shore power.
This provides a valuable benefit when camping off-grid. For example, owners can use battery power to run the air conditioner long enough to cool the trailer before going to bed.
Naturally, RV air conditioning requires a significant amount of power. Runtime will depend on:
- Battery bank size
- Current battery charge level
- Other electrical loads running in the trailer
For this reason, running an RV air conditioner from battery power is typically best suited for short-term cooling rather than continuous overnight operation.
Understanding Inverter Power Limits
Although the inverter can supply up to 3000 watts, it’s important to understand that multiple high-power appliances cannot always run at the same time.
Examples of high-power appliances include:
- Air conditioner: approximately 1,200–1,600 watts
- Microwave oven: approximately 1,000–1,500 watts
- Coffee maker: approximately 800–1,200 watts
- Hair dryer: approximately 1,200–1,875 watts
Running several of these appliances simultaneously could approach or exceed the inverter’s capacity. In most situations, it’s best to operate one high-power appliance at a time while using inverter power.
Monitoring RV Battery Power Usage
Encore owners can monitor battery usage through the Victron SmartShunt, included in the Power Up Package.
Using the Victron mobile app, owners can see real-time information about their RV electrical system, including:
- Battery state of charge
- Current power consumption
- Charging input from solar or other sources
- Estimated runtime at the current usage level
This makes it easier to understand how much energy appliances are using and manage RV battery power while camping off-grid.
Built-In RV Electrical System Protection
Encore RV’s electrical system includes circuit breakers and other protections designed to safeguard the inverter and wiring.
If too much power is drawn from the inverter system, a breaker will automatically trip to help prevent damage to the electrical system. Reducing the electrical load and resetting the breaker restores normal operation.
The Encore RV Electrical System Advantage
Encore trailers offer flexible RV inverter capabilities that allow owners to enjoy household conveniences even when camping off-grid.
Key benefits include:
- Converts 12V battery power into 120V household electricity
- 3000-watt inverter available in the Power+Plus Package
- Automatic transfer relay switches between shore power and inverter power
- Energy-efficient air conditioning can run briefly from battery power
- Victron monitoring allows owners to track RV battery usage in real time
- Circuit breakers protect the electrical system
Together with lithium RV batteries, solar charging, DC-to-DC charging, and shore power charging, the inverter is another important part of the complete Encore RV electrical system, providing owners with more flexibility to use battery power wherever their adventures take them.
